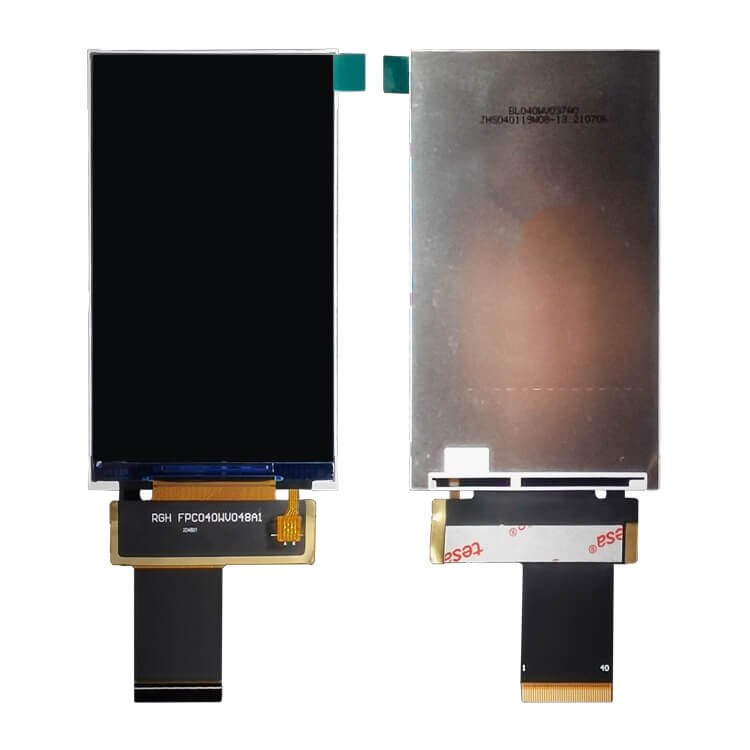

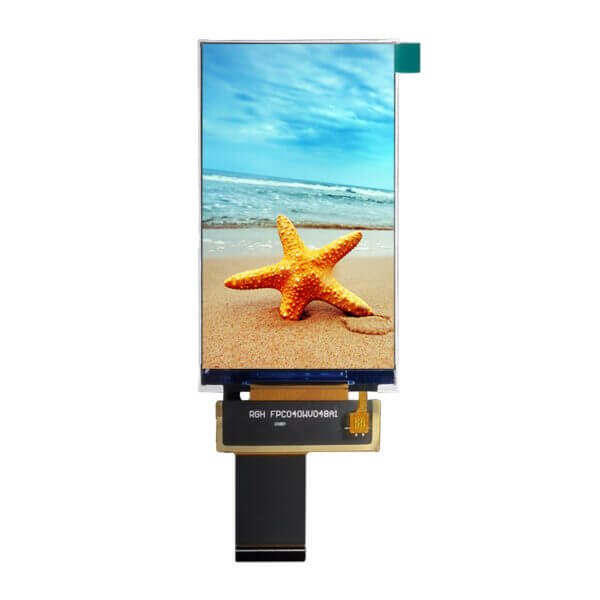

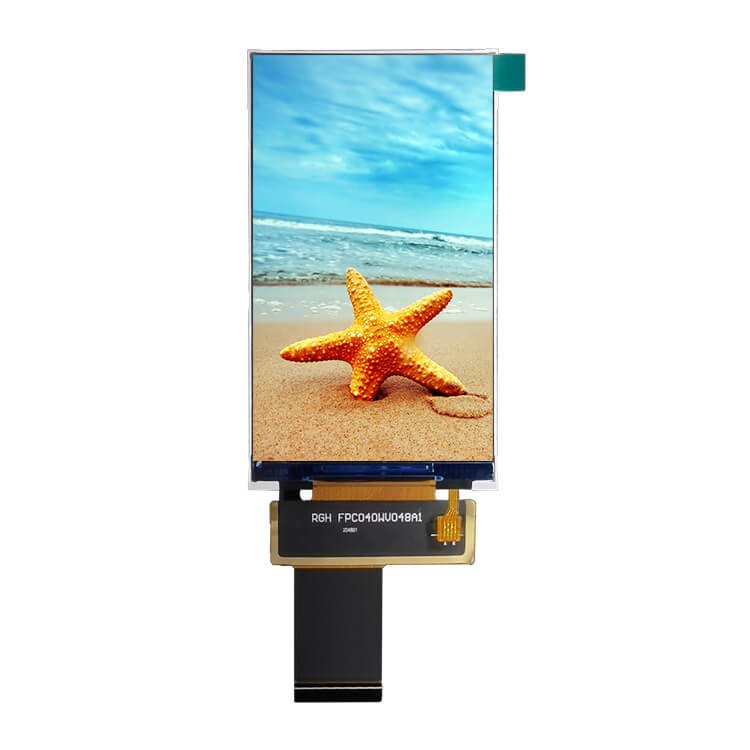

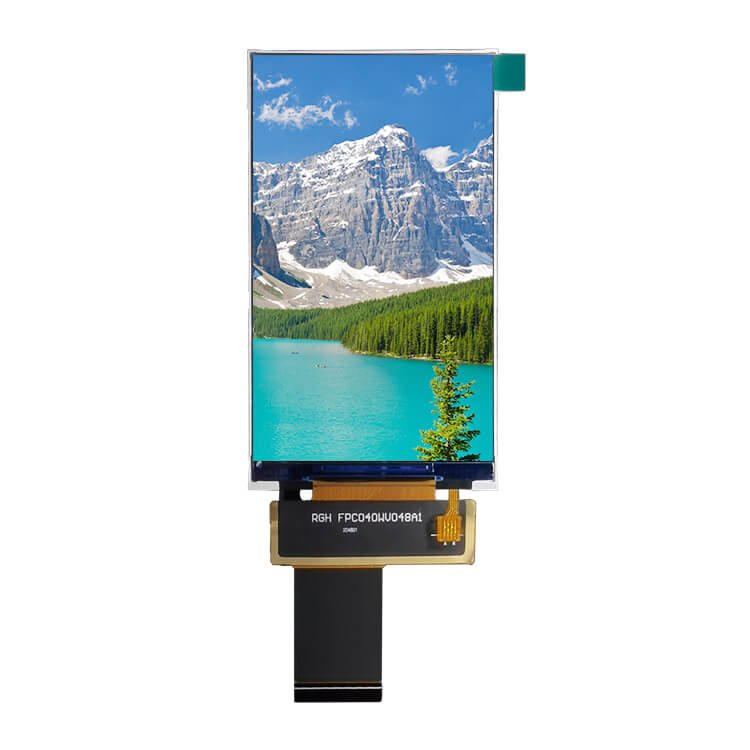

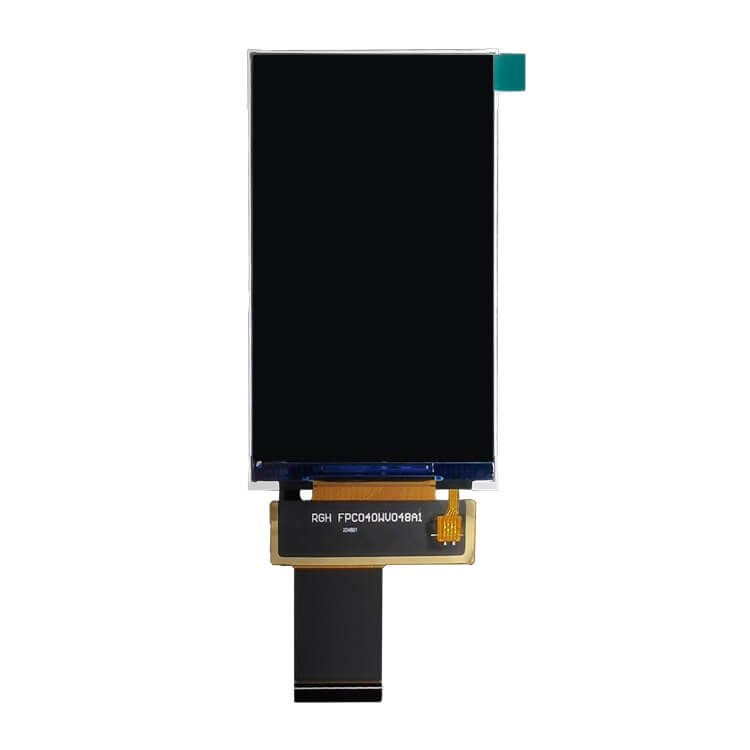

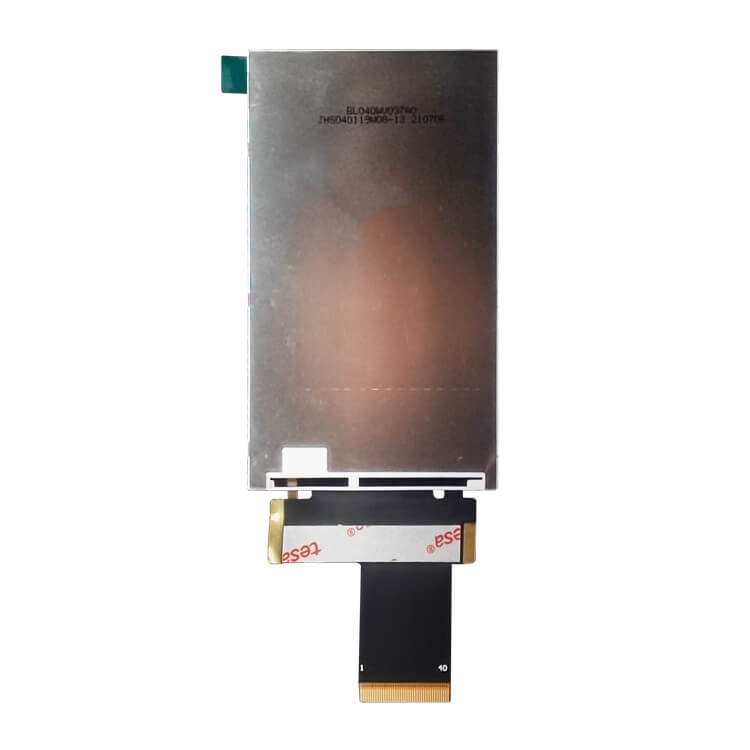

Display model GL397TFT48A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.97-inch diagonally measured active display area with (480 horizontal by 800 vertical pixels)resolution.
| Item No. | GL397TFT48A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
Display model GL397TFT48A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.97-inch diagonally measured active display area with (480 horizontal by 800 vertical pixels)resolution.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 3.97 | inch |
| Resolution | 480*800 | |
| LCD Type | a-Si TFT LCD | |
| View Direction | IPS | |

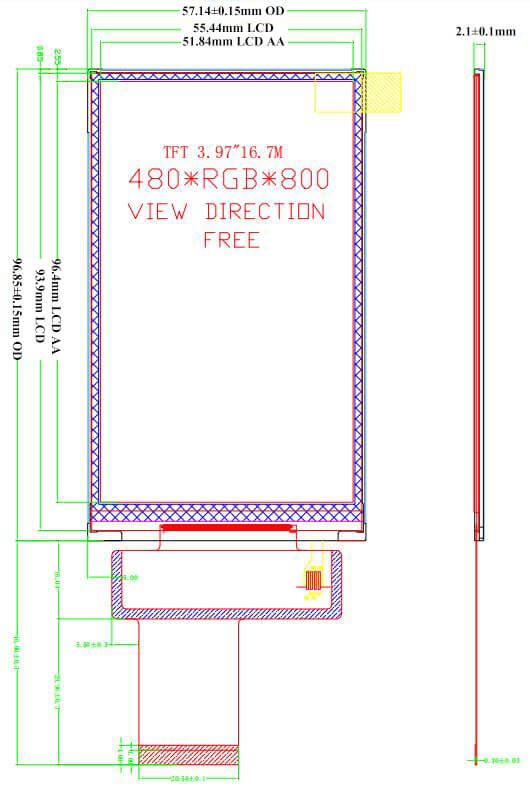

| Outline Dimension | 57.14(W) x 96.85(H) x 2.1(D) | mm |
| Active Area | 51.84(W) x86.4(H) | mm |
| Display Colors | 16.7M | |
| Display Mode | Normally Black. Transmissive TFT | |
| LCM Interface | 3SPI+RGB24BIT | |
| Driver IC | ST7701S | |

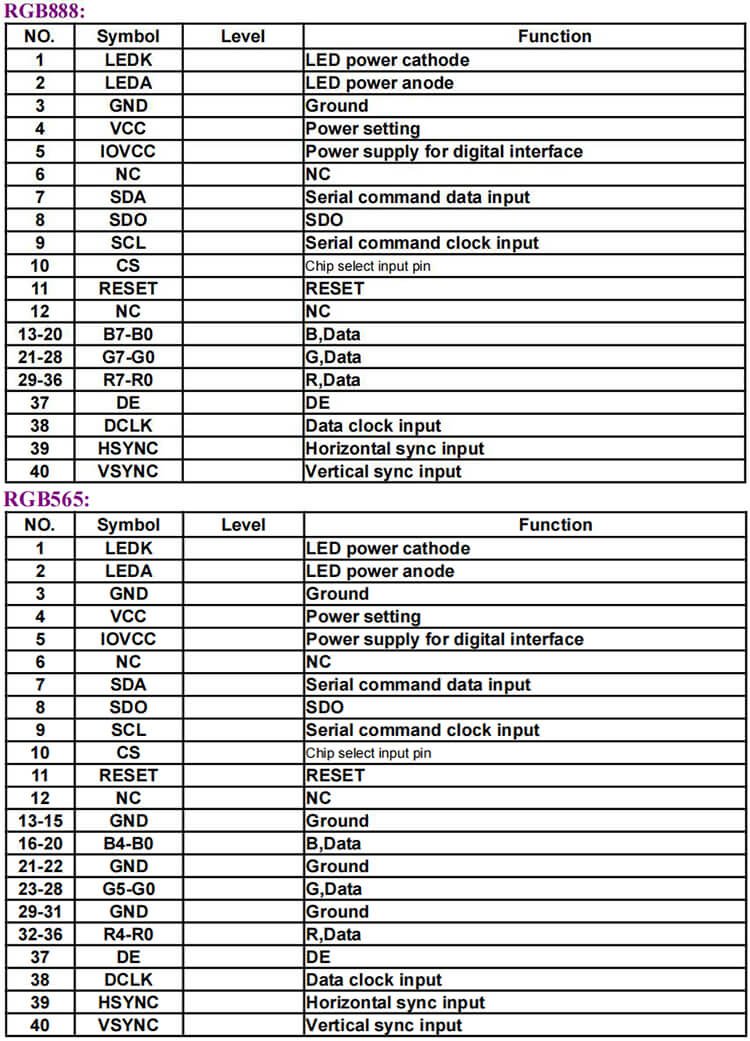

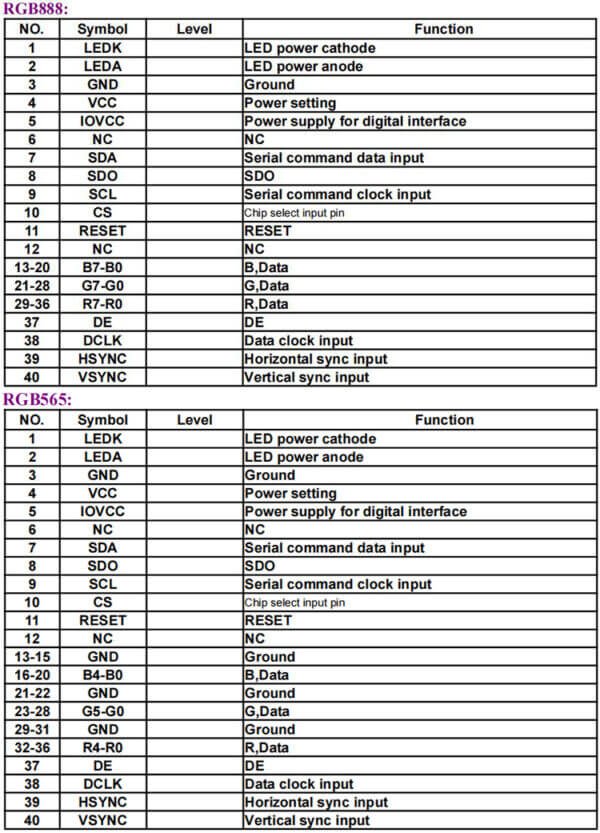

| Pin Number | 40Pin 0.5mm | |
| Brightness | 510 | cd/m2 |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
