3.5inch 720*1280 Full IPS TFT LCD Display ST7703 MIPI Handheld Device LCD Module

Category

Display model GL350TFT06A is a color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5-inch diagonally measured active display area with (720 horizontal by 1280 vertical pixels)resolution.

Additional information

Item No.

GL350TFT06A

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



Display model GL350TFT06A is a color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5-inch diagonally measured active display area with (720 horizontal by 1280 vertical pixels)resolution.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)3.5inch
Resolution720*1280
LCD Typea-Si TFT LCD
View DirectionIPS

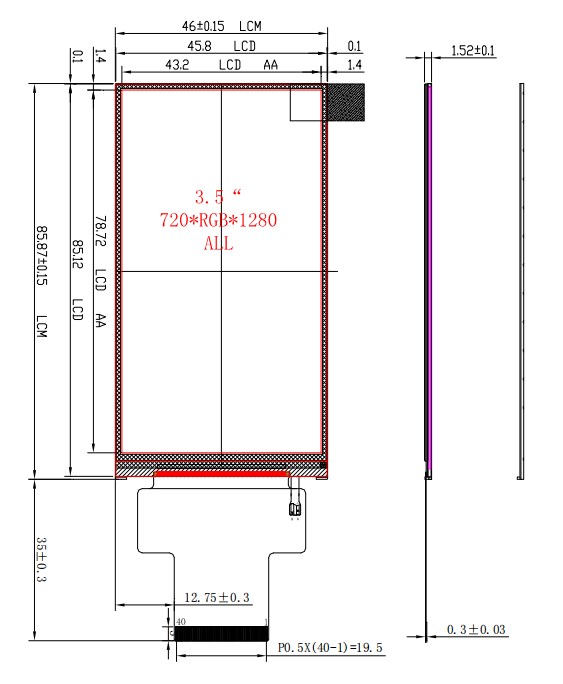

Outline Dimension46.00(W) *85.87(H) *1.52(T)mm
Active Area43.2(W)*78.72(H)mm
Display Colors262K
Display ModeNormally Black. Transmissive TFT
LCM InterfaceMIPI
Driver ICST7703
Brightness410cd/m2
FPC Connector0.5mm 40Pin
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Application:
  1. Car Display
  2. Handheld Device
  3. Medical Device
  4. IP Phone
  5. Video Doorbell
  6. POS
  7. Home Appliance
  8. Intelligent education robot
  9. Smart home controller
  10. Advanced driver-assistance systems (ADAS)
