3.5inch 480*800 IPS TFT LCD Display 3SPI RGB18Bit Interface ST7701S Automotive LCD Screen

Category

Display model GL350TFT40A is a color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 inch diagonally measured active display area with (480 horizontal by 800 vertical pixels)resolution.

Additional information

Item No.

GL350TFT40A

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



Display model GL350TFT40A is a color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5-inch diagonally measured active display area with (480 horizontal by 800 vertical pixels)resolution.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)3.5inch
Resolution480*800
Display ModeNormally Black. Transmissive TFT
LCD Typea-Si TFT LCD
View DirectionIPS

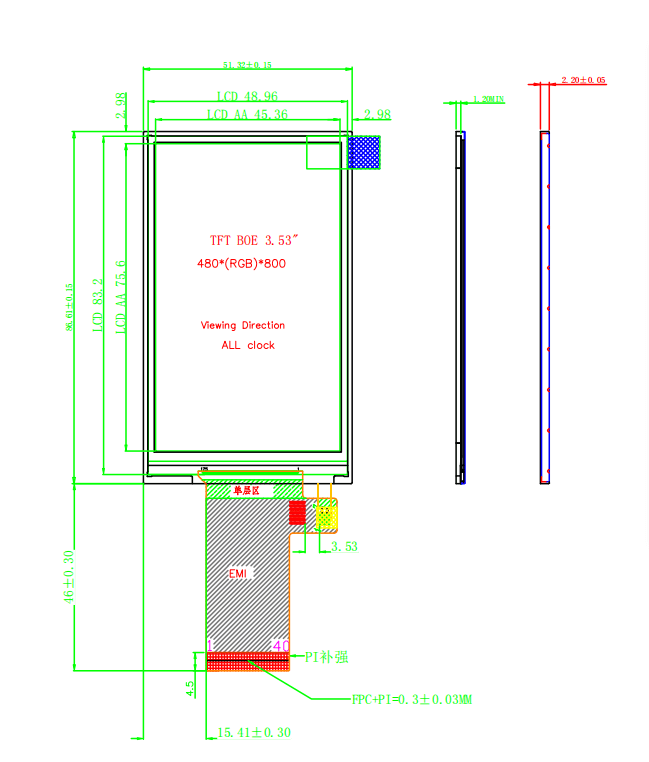

Outline Dimension51.32(W)*86.61(H)×2.2(D)mm
Active Area45.36(W)*75.60(H)mm
Display Colors262K
LCM Interface3SPI+RGB 18Bit
Driver ICST7701S
Brightness400cd/m2
LED Connection7 LEDs in series
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Application:
  1. Car Display
  2. Medical Device
  3. IP Phone
  4. Video Doorbell
  5. Smart Lock
  6. Home Appliance
  7. Intelligent education robot
  8. Smart home controller
  9. Automotive Displays
