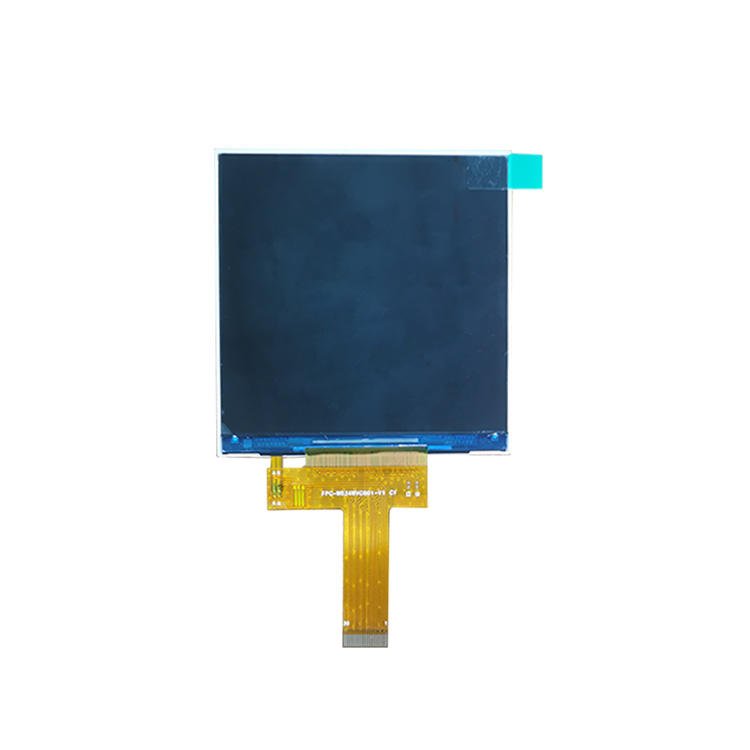

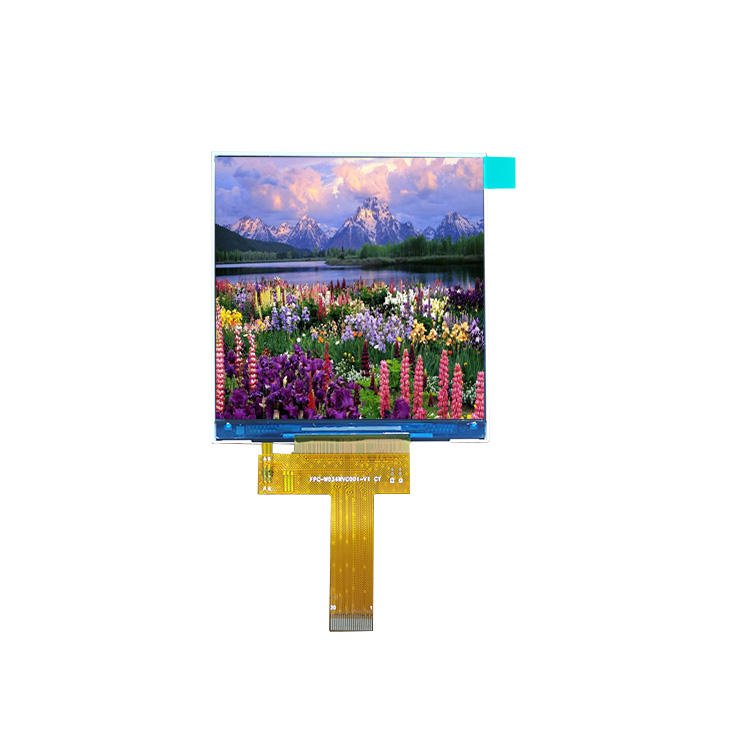

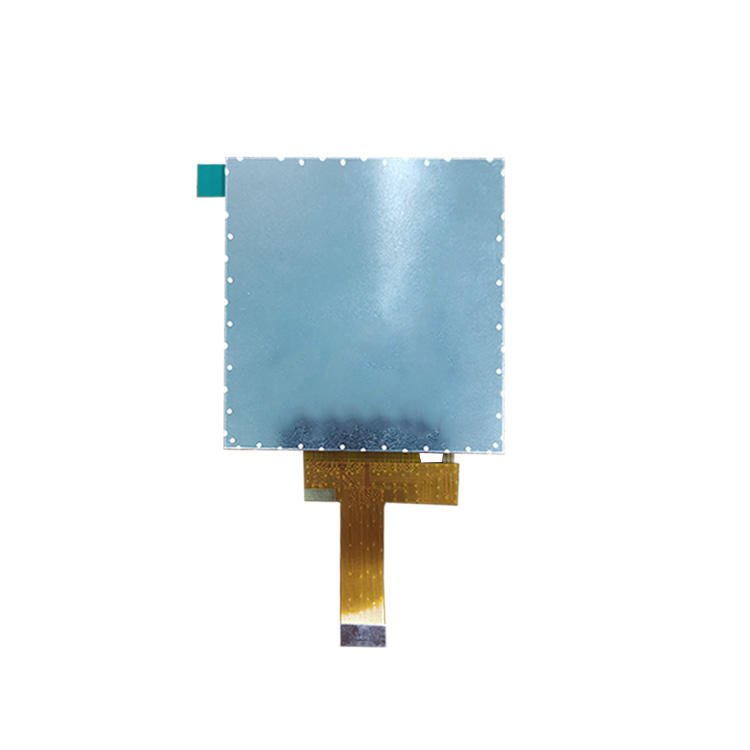

Display model GL340TFT03A is a color-active matrix TFT(Thin Film Transistor)LCD(liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, a driver circuit,back-light unit. The resolution of a 3.4-inch TFT-LCD contains 480×480 pixels and can display up to 16.7M colors.
| Item No. | GL340TFT03A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
Display model GL340TFT03A is a color-active matrix TFT(Thin Film Transistor)LCD(liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, a driver circuit,back-light unit. The resolution of a 3.4-inch TFT-LCD contains 480×480 pixels and can display up to 16.7M colors.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 3.4 | inch |
| Resolution | 480*480 | |
| Display Mode | Normally Black. Transmissive TFT | |
| LCD Type | a-Si TFT LCD | |
| View Direction | IPS | |
| Display Colors | 16.7M | |

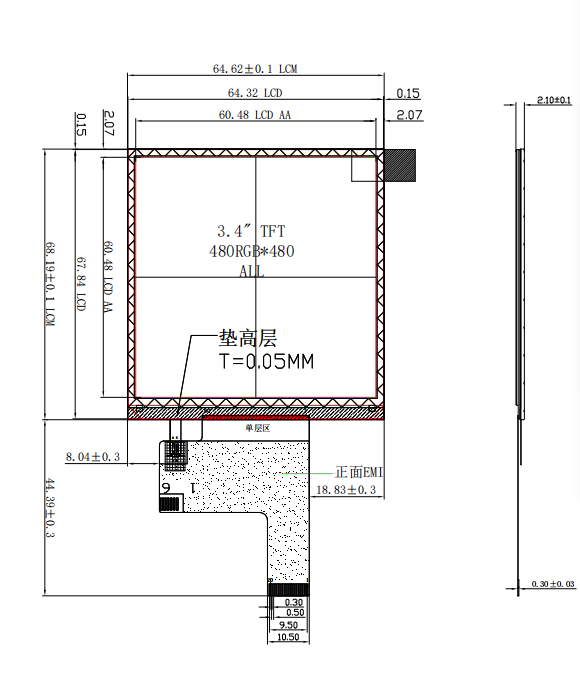

| Outline Dimension | 65.72(W)*69.64(H)*2.45(D) | mm |
| Active Area | 60.48(W)*60.48(H) | mm |

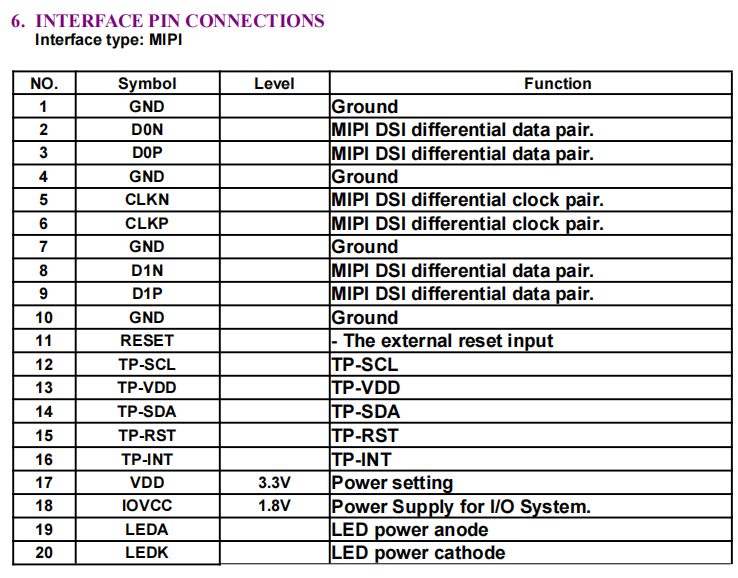

| LCM Interface | MIPI 2-Lane | |
| Driver IC | ST7701S | |
| Brightness | 550 | cd/m2 |
| Pin Number | 20Pin | |
| Operation Temperature | -20 to 70 | degree |
| Storage Temperature | -30 to 80 | degree |
7-Day Delivery LCD Display Factory, Customization Solution is Available.
