GL338TFT10A is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.38″contains 180 RGB X640 pixels and can display up to 16.M colors.
| Item No. | GL338TFT10A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Mass Production |
| Customization | Support |
| Availability | 5 Years Stable Supply |
GL338TFT10A is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.38″contains 180 RGB X640 pixels and can display up to 16.M colors.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 3.38 | inch |
| Resolution | 180RGB*640 | |
| LCD Type | a-Si TFT LCD | |
| Display Mode | Normally Black. Transmissive TFT | |
| View Direction | IPS | |

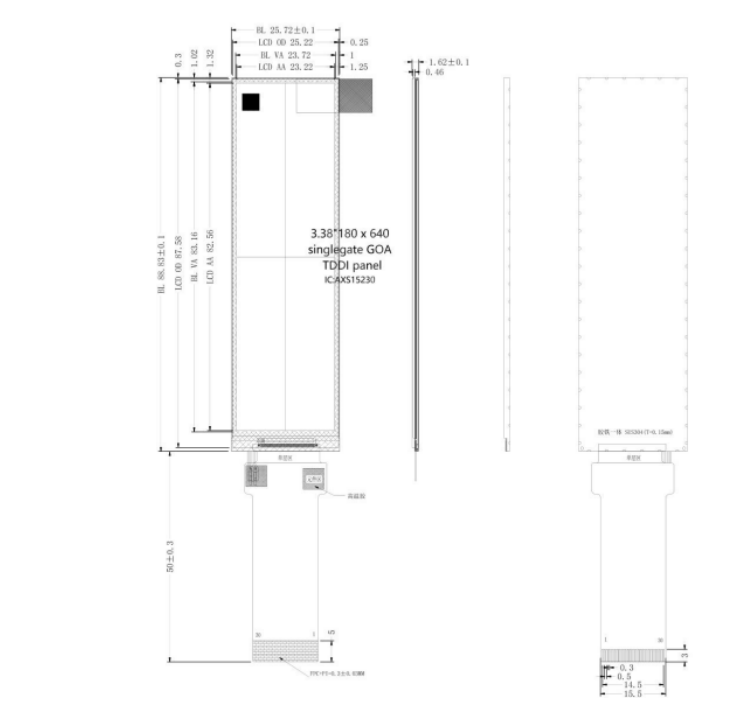

| Outline Dimension | 25.72(W)*88.83(H)*1.62(T) | mm |
| Active Area | 23.22(W)*82.56(H) | mm |
| Display Colors | 16.7M | |
| LCM Interface | SPI/MCU | |
| Driver IC | AXS15231B | |
| Brightness | 600 | cd/m2 |
| FPC Connector | 0.5mm 30Pin | |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
7-Day Delivery LCD Display Factory, Customization Solution is Available.
