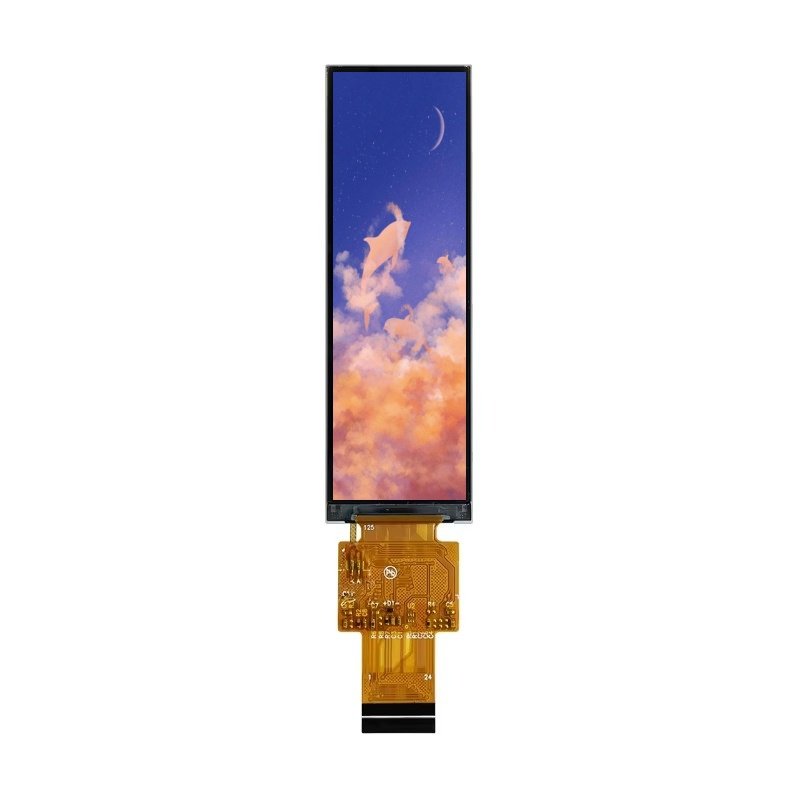

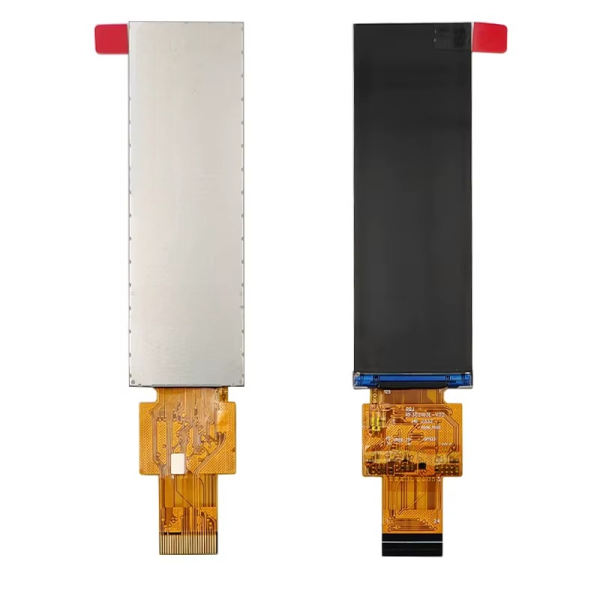

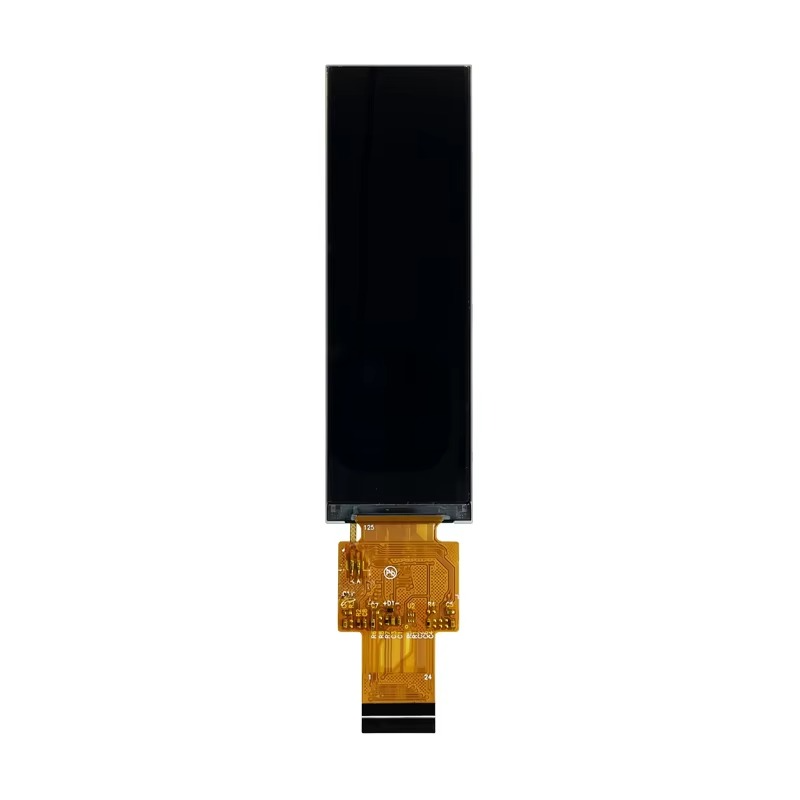

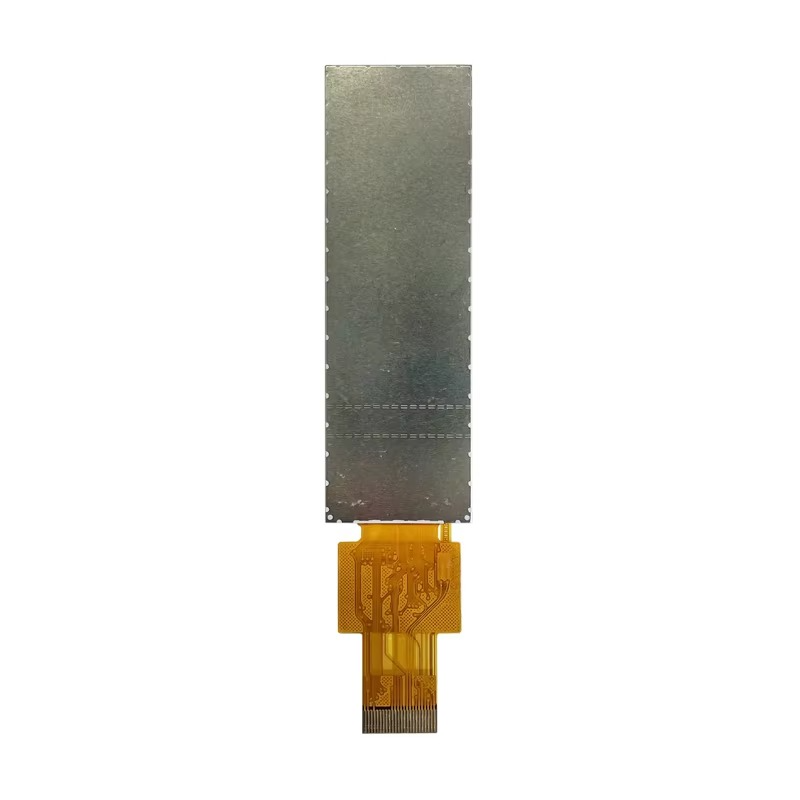

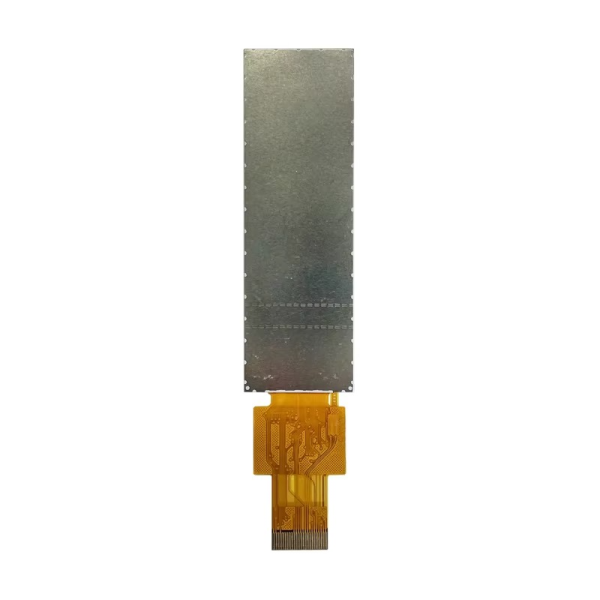

Display model GL302TFT10A is a transmissive type color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This Module is a TFT LCD module, a driver circuit, and a backlight unit. It has a 3.02-inch diagonally measured active display area with (170horizontal by 560 vertical pixels)resolution and can display up to 262K colors.
| Item No. | GL302TFT10A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Mass Production |
| Customization | Support |
| Availability | 5 Years Stable Supply |
Display model GL302TFT10A is a transmissive type color active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This Module is a TFT LCD module, a driver circuit, and a backlight unit. It has a 3.02-inch diagonally measured active display area with (170horizontal by 560 vertical pixels)resolution and can display up to 262K colors.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 3.02 | inch |
| Resolution | 170RGB*560 | |
| LCD Type | a-Si TFT LCD | |
| Display Mode | Normally Black. Transmissive TFT | |
| View Direction | IPS | |

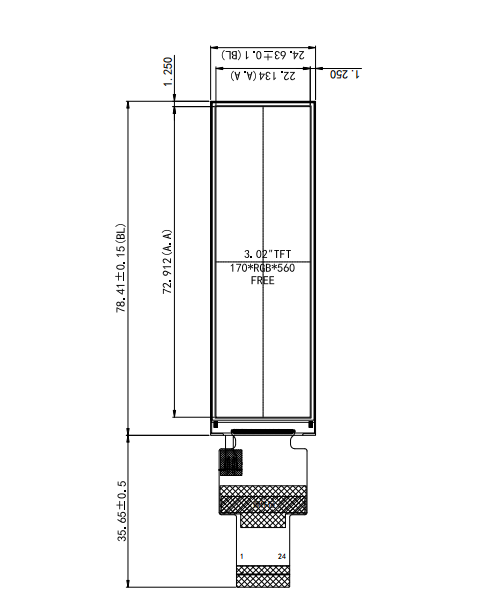

| Outline Dimension | 24.63(W)*78.41(H)*1.54(T) | mm |
| Active Area | 22.134(W)*72.912(H) | mm |
| Display Colors | 262K | |
| LCM Interface | SPI 4W | |
| Driver IC | AXS15231B | |
| Brightness | 450 | cd/m2 |

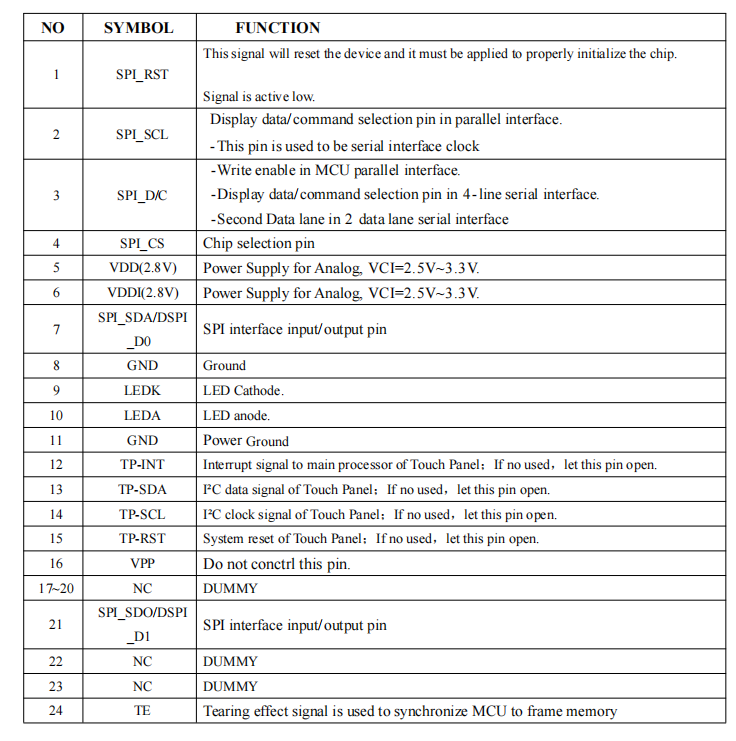

| FPC Connector | 0.5mm 24Pin | |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
