2.86 inch 376*960 IPS LCD Display MIPI DSI GPS LCD Display ST7701S

Display model GL286TFT01A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.86-inch diagonally measured active display area with QVGA(376 horizontal by 960 vertical pixels)resolution.

Additional information

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



Display model GL286TFT01A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.86-inch diagonally measured active display area with QVGA(376 horizontal by 960 vertical pixels)resolution.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)2.86inch
Resolution376*960
LCD Typea-Si TFT LCD
View DirectionIPS

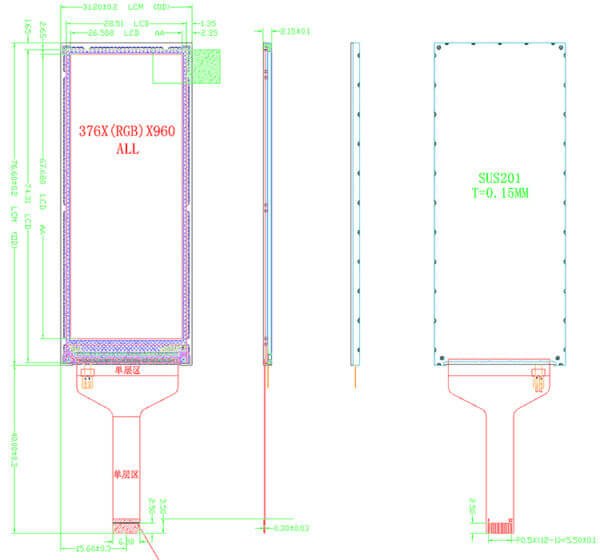

Outline Dimension31.2(W)*76.6(H)*2.35(T)mm
Active Area26.508(W)*67.68(H)mm
Display Colors262K
Display ModeNormally Black. Transmissive TFT

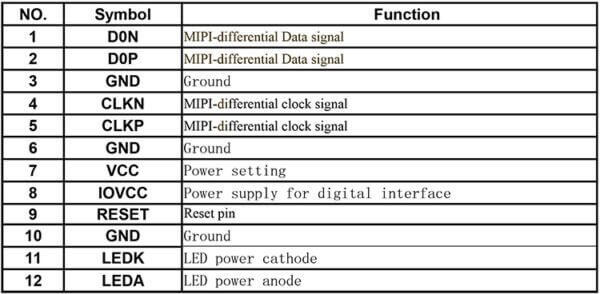

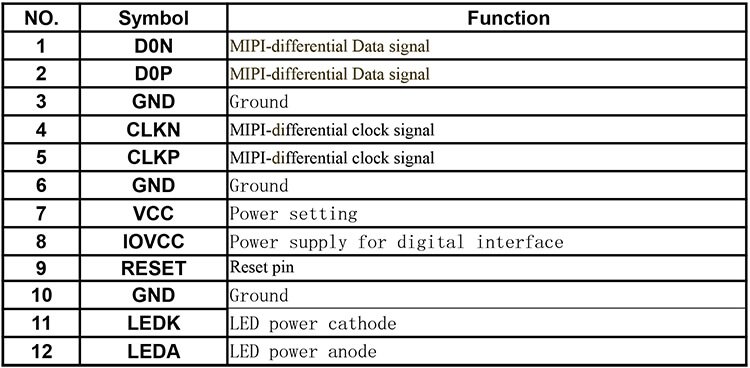

LCM InterfaceMIPI
Driver ICST7701S
Brightness450cd/m2
Operation Temperature-30℃~85℃
Storage Temperature-30℃~85℃



  • Product Applications
  1. Car GPS
  2. Wearable devices
  3. Handheld devices
  4. POS
  5. IP Phone
  6. Smart camera
  7. Intelligent education robot
  8. Smart home controller
  9. Advanced driver-assistance systems (ADAS)
