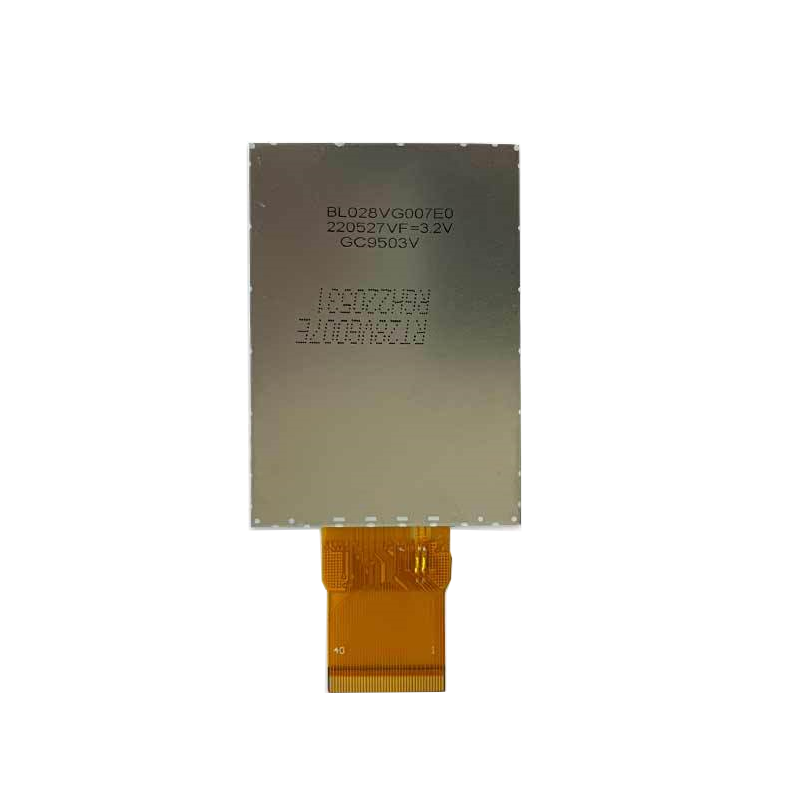

2.83inch 480*640 IPS LCD Display RGB 31Pin ST7701S TFT LCD Screen Medical Device Module

Display model GL283TFT17A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.83-inch diagonally measured active display area with (480 horizontal by 640 vertical pixels)resolution.

Additional information

Item No.

GL283TFT17A

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



Display model GL283TFT17A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.83-inch diagonally measured active display area with (480 horizontal by 640 vertical pixels)resolution.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)2.83/2.8inch
Resolution480*640
Display ModeNormally Black. Transmissive TFT
LCD Typea-Si TFT LCD
View DirectionIPS

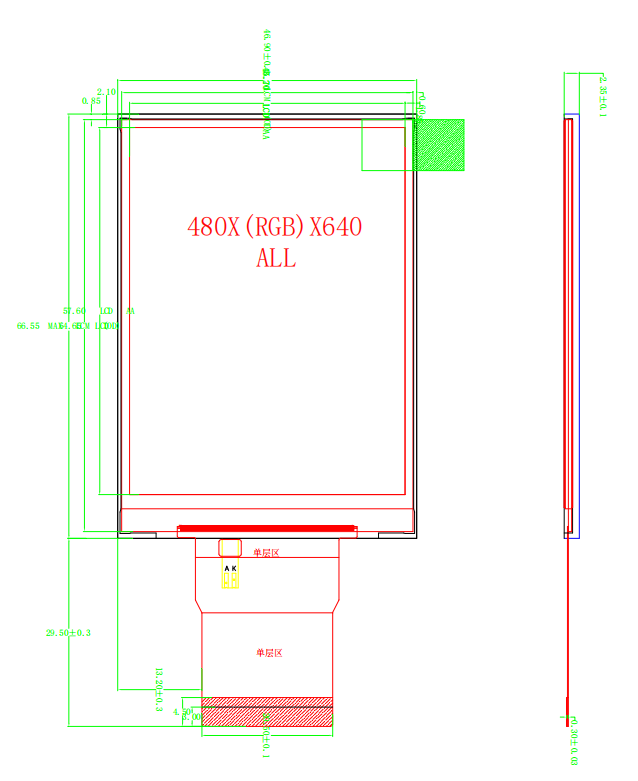

Outline Dimension50.00 (H) *69.20(V) *2.35(T)mm
Active Area43.2(H)* 57.6(V)mm
Display Colors262K
LCM InterfaceRGB
Driver ICST7701S
Brightness230cd/m2
Pin Number31Pin FPC 0.3mm
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Application:
  1. Handheld devices
  2. Medical Device
  3. Automotive
  4. IP Phone
  5. Video Doorbell
  6. Intelligent education robot
  7. Smart home controller
  8. Advanced driver-assistance systems (ADAS)
