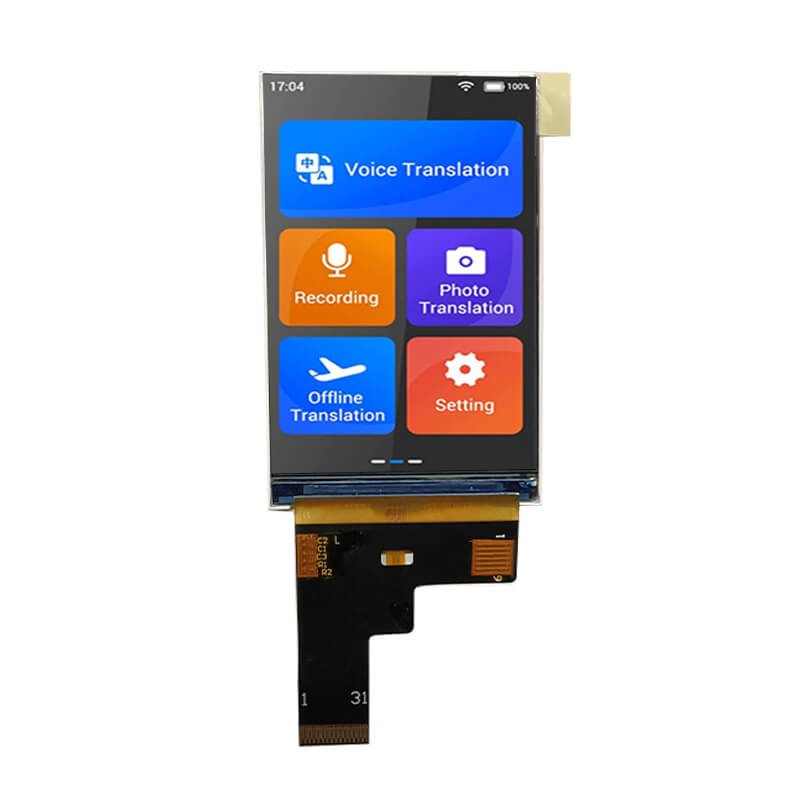

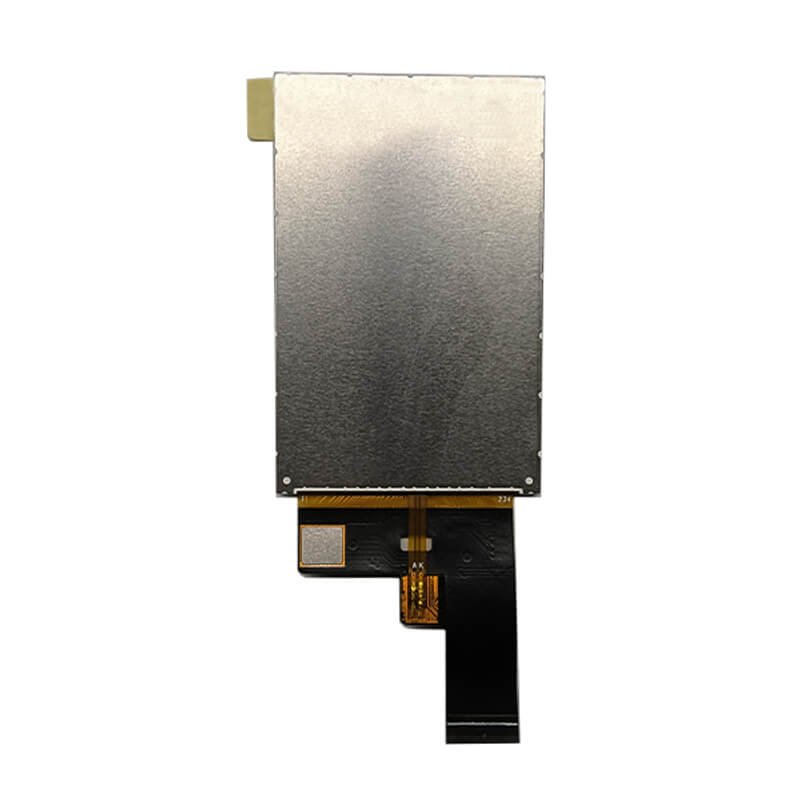

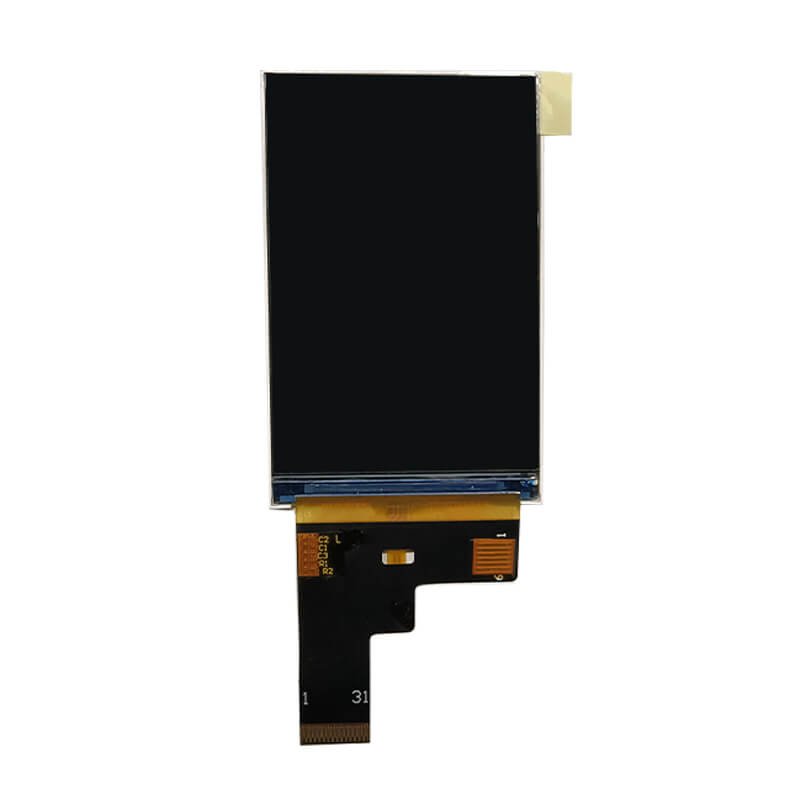

2.3inch IPS TFT LCD Display 368*552 MIPI Interface Medical Device LCD Screen 800nit

GL230TFT10A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 2.3-inch contains 368(RGB)*552 dots and can display up to 262K colors.

Additional information

Item No.

GL230TFT10A

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL230TFT10A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 2.3-inch contains 368(RGB)*552 dots and can display up to 262K colors.



  •  Product Features
FeaturesSpecificationUnit
Display Size(Diagonal)2.3inch
Resolution368*552
Display ModeNormally Black. Transmissive TFT
LCD Typea-Si TFT LCD
View DirectionIPS

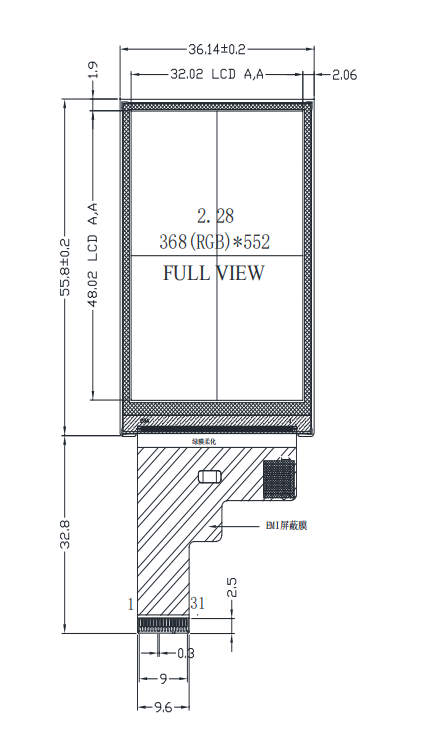

Outline Dimension36.14(W) *55.8(H) *2.32mm
Active Area32.02(W) *48.02(H)mm
Display Colors262K
LCM InterfaceMIPI
Driver ICST7701S
Brightness600-800cd/m2

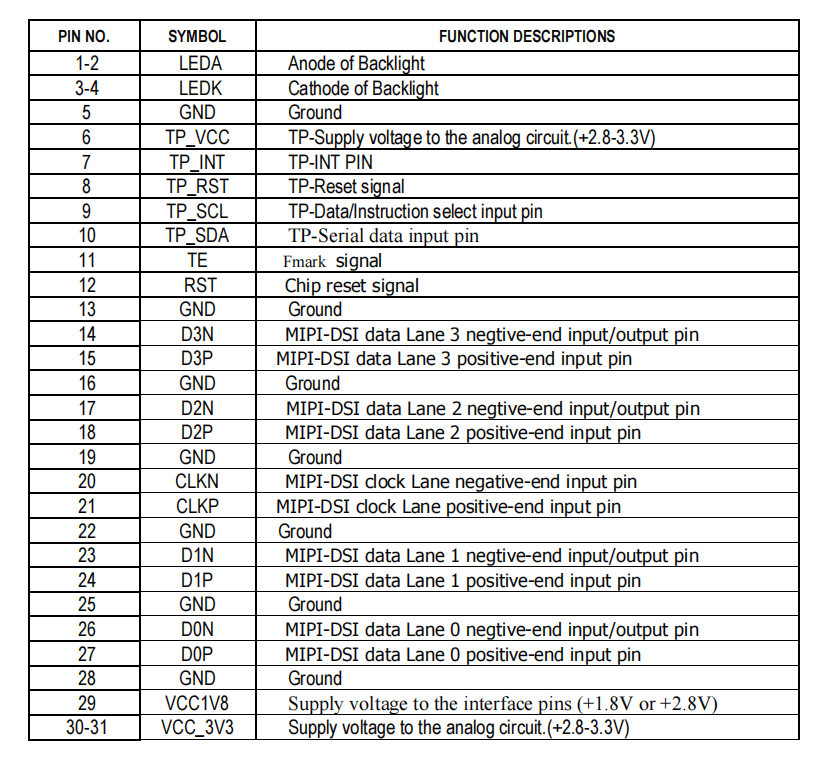

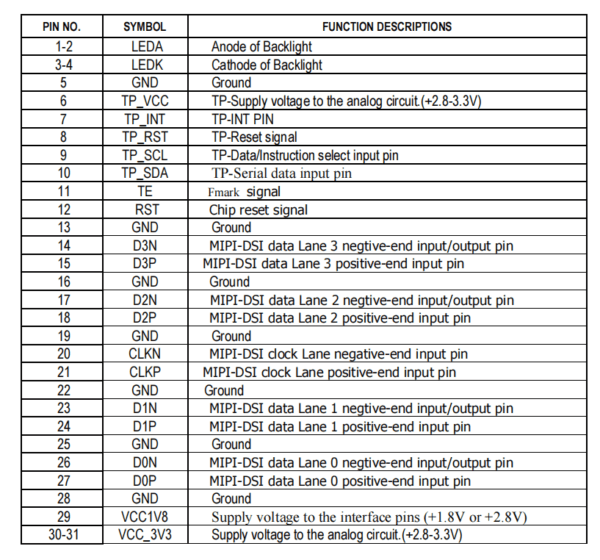

Pin Number31Pin
FPC ConnectorFPC 0.3mm
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Applications
  1. Medical Device
  2. Industrial Tool
  3. Router
  4. Wearable devices
  5. Handheld device
  6. Smart Home
  7. Oven
  8. Kids toys
  9. Smart home controller
