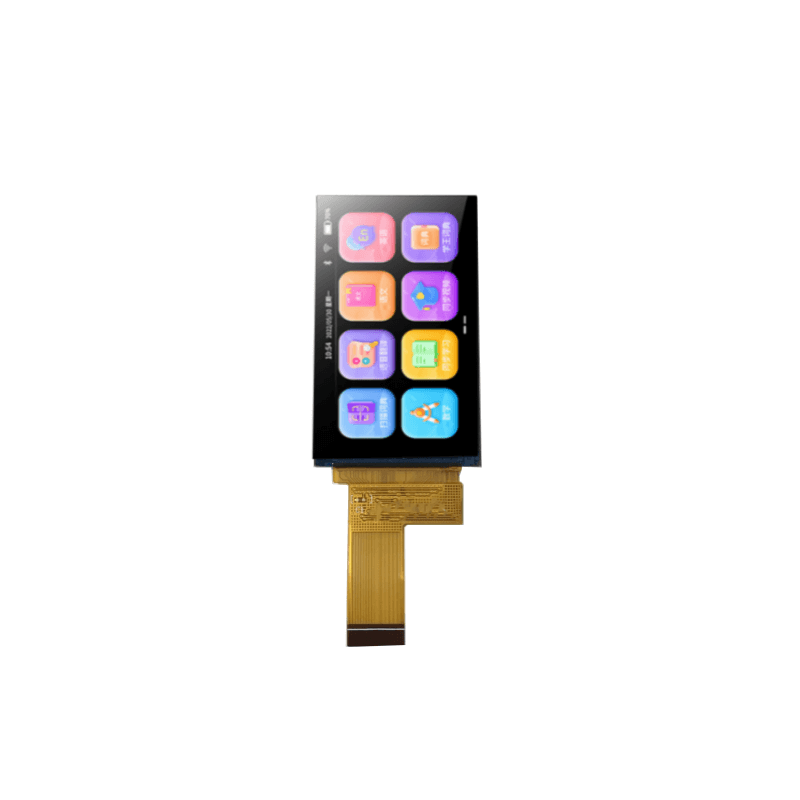

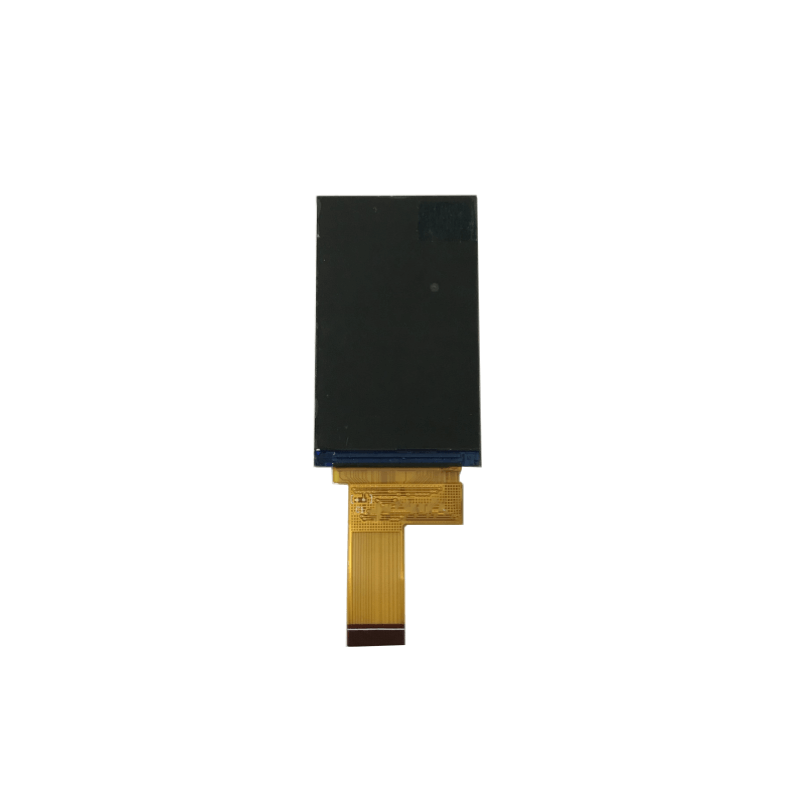

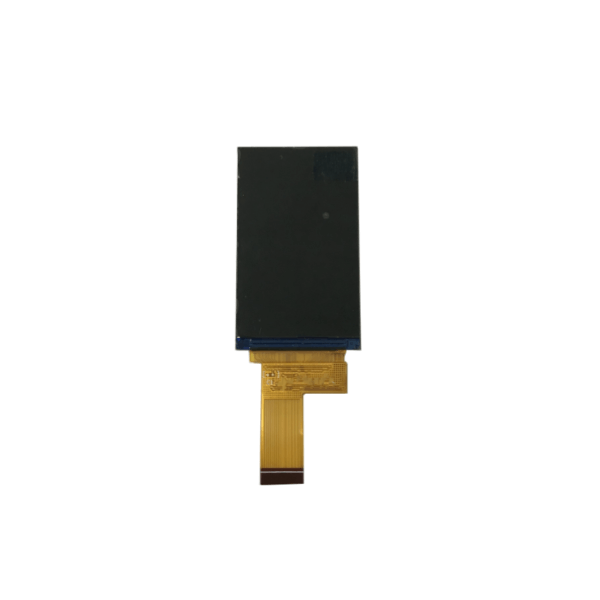

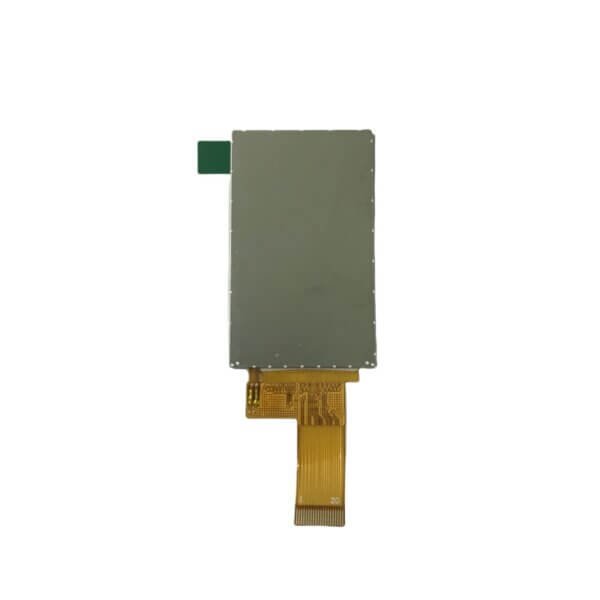

GL220TFT03A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor). It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 480X800 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.
| Item No. | GL220TFT03A |
|---|---|
| MOQ | 2pcs |
| Samples | In Stock |
| Lead Time | 7 Working Days |
| Payment Term | Paypal, T/T |
| Status | Mass Production |
| Availability | 5 Years Stable Supply |
| Customization | Support |
GL220TFT03A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor). It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 480X800 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 2.2 | inch |
| Display Mode | Normally Black. Transmissive TFT | |
| LCD Type | a-Si TFT LCD | |
| Resolution | 480*800 | |
| View Direction | IPS | |

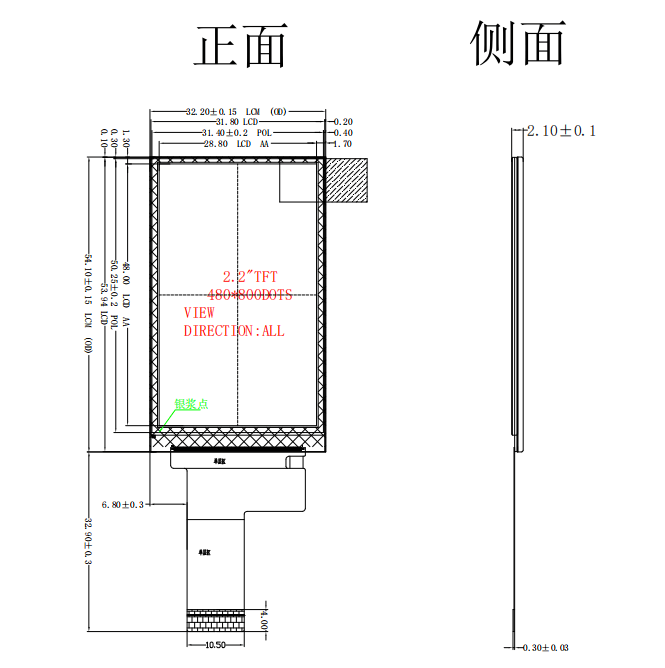

| Outline Dimension | 32.2(W)*54.1(H)*2.1(D) | mm |
| Active Area | 28.8(W)*48(H) | mm |
| Display Colors | 262K | |
| LCM Interface | MIPI | |
| Driver IC | ST7701S | |
| Brightness | 480 | cd/m2 |

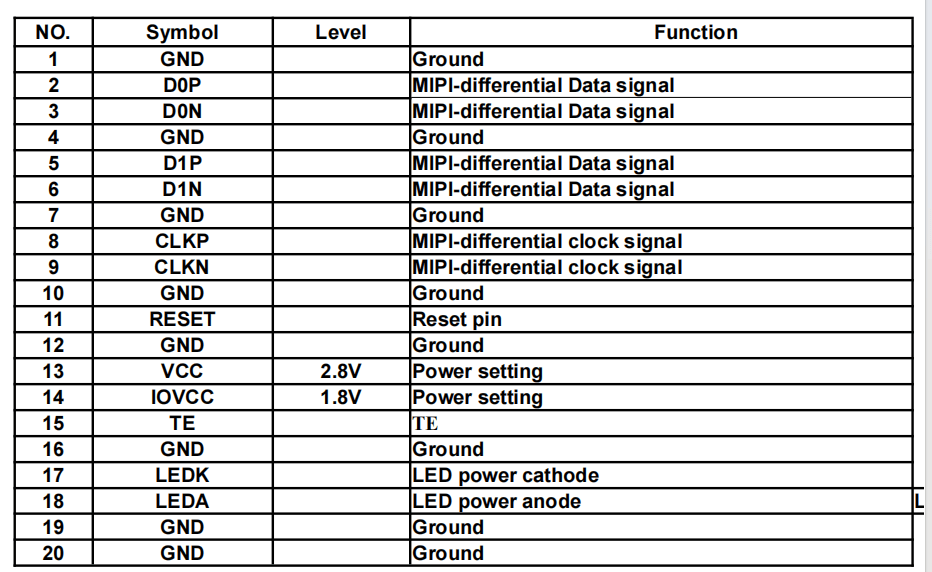

| FPC Connector | 0.5mm 20Pin | |
| LED Conenction | 4 LED in Parallel | |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
