2.0inch 480*360 Landscape IPS TFT LCD Display ST7701S Driver Industrial Use LCD Screen

Category

GL200TFT02A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor). It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 480X360 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.

Additional information

Item No.

GL200TFT02A

MOQ

2pcs

Samples

In Stock

Lead Time

7 Working Days

Payment Term

Paypal, T/T

Status

Mass Production

Availability

5 Years Stable Supply

Customization

Support

Product Details



GL200TFT02A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor). It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 480X360 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)2.0inch
Display ModeNormally Black. Transmissive TFT
LCD Typea-Si TFT LCD
Resolution480*360
View DirectionIPS

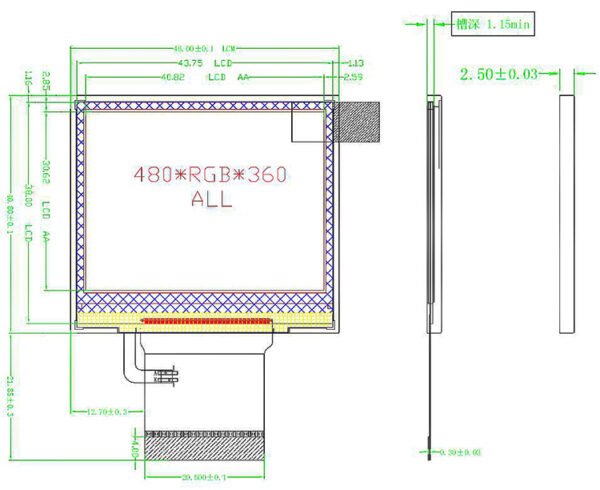

Outline Dimension46(W)*40.8(H)*2.5(D)mm
Active Area40.824(W)*30.618(H)mm
Display Colors262K
LCM InterfaceMIPI/ RGB16Bit
Driver ICST7701S
Brightness600cd/m2

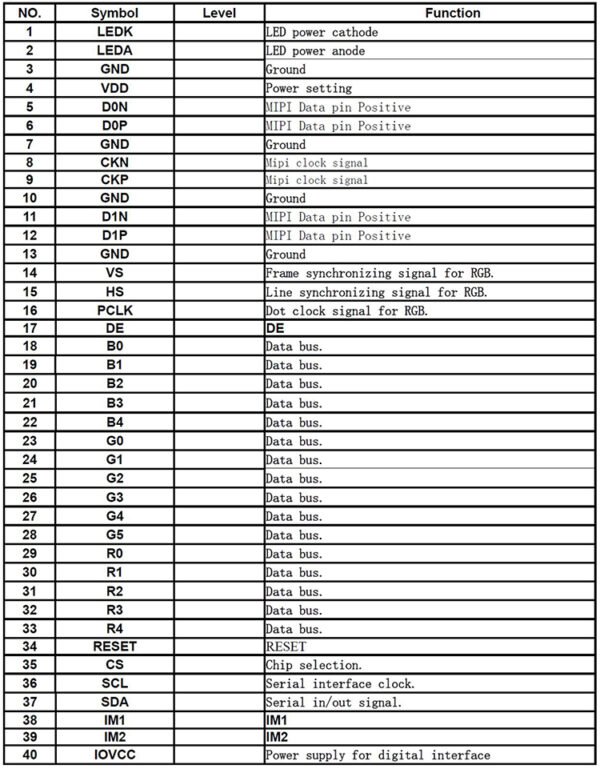

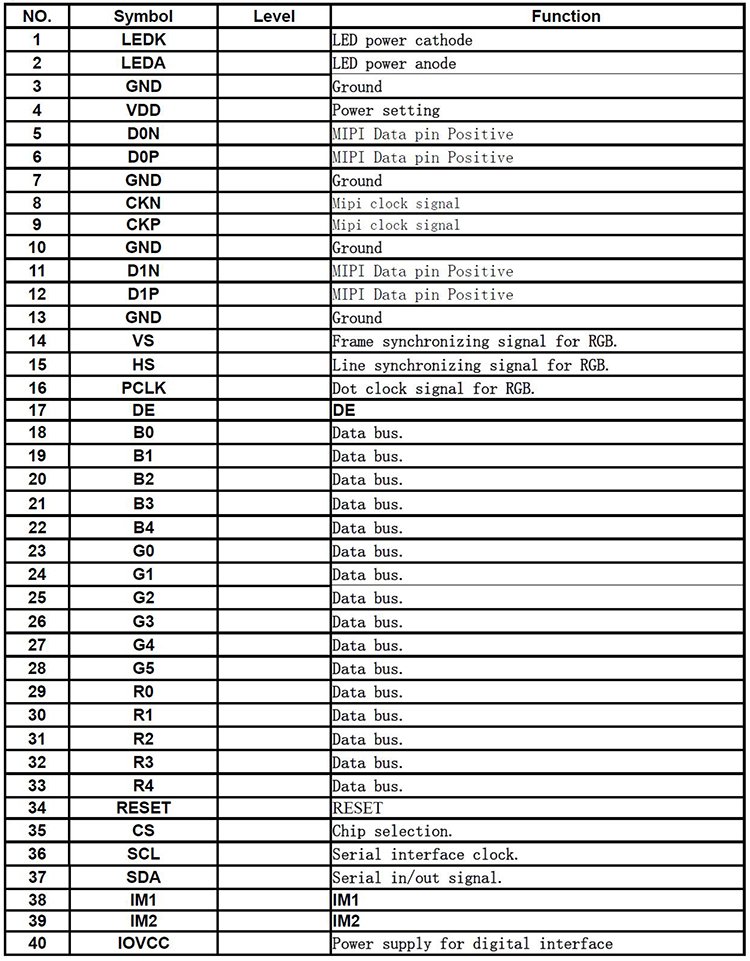

FPC Connector0.5mm 40Pin
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Application:
  1. Smartwatch.
  2. Handheld device
  3. Smart camera
  4. Intelligent education robot
  5. Kids toys
  6. Smart home controller
  7. Advanced driver-assistance systems (ADAS)
