Display model GL201TFT10A is a color-active matrix TFT(Thin Film Transistor)LCD(liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, a driver circuit,back-light unit. The resolution of a 2.01-inch TFT-LCD contains 240×296 pixels and can display up to 262K colors.
| Item No. | GL201TFT10A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
Display model GL201TFT10A is a color-active matrix TFT(Thin Film Transistor)LCD(liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, a driver circuit,back-light unit. The resolution of a 2.01-inch TFT-LCD contains 240×296 pixels and can display up to 262K colors.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 2.01 | inch |
| Resolution | 240*296 | |
| Display Mode | Normally Black. Transmissive TFT | |
| LCD Type | a-Si TFT LCD | |
| View Direction | IPS | |

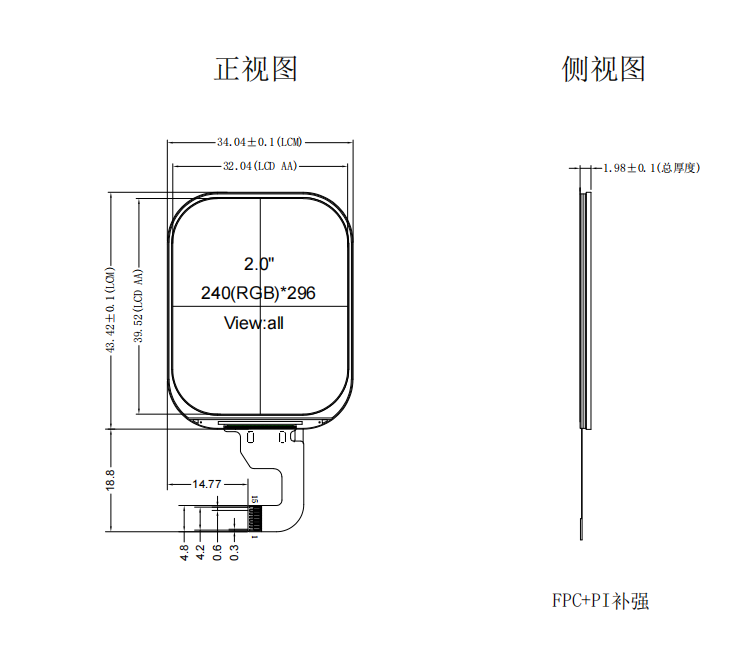

| Outline Dimension | 34.04(H) * 43.42(V) *1.98(D) | mm |
| Active Area | 32.04(H)*39.52(V) | mm |
| Display Colors | 262K | |
| LCM Interface | SPI 4W | |
| Driver IC | JD9853A | |
| Brightness | 210 | cd/m2 |
| Pin Number | FH26-15S-0.3SHW | |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
7-Day Delivery LCD Display Factory, Customization Solution is Available.
