Display model GL133TFT11A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is composed of a color TFT-LCD panel, driver ICs, a control circuit, and a power supply circuit. Graphics and texts can be displayed on a 1920*3*1080 dots panel with 262144 colors by using an eDP(Embedded Display Port) ver1.2 interface and supplying + 3.3V DC supply voltage for TFT-LCD panel driving.
| Item No. | GL133TFT11A |
|---|---|
| MOQ | 2pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
Display model GL133TFT11A is a color-active matrix thin-film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is composed of a color TFT-LCD panel, driver ICs, a control circuit, and a power supply circuit. Graphics and texts can be displayed on a 1920*3*1080 dots panel with 262144 colors by using an eDP(Embedded Display Port) ver1.2 interface and supplying + 3.3V DC supply voltage for TFT-LCD panel driving.
In this TFT-LCD panel, color filters for excellent color performance are incorporated into pictures, making this module optimized for use in multi-media applications.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 13.3 | inch |
| Resolution | 1920*1080 | |
| LCD Type | a-Si TFT LCD | |
| View Direction | IPS | |

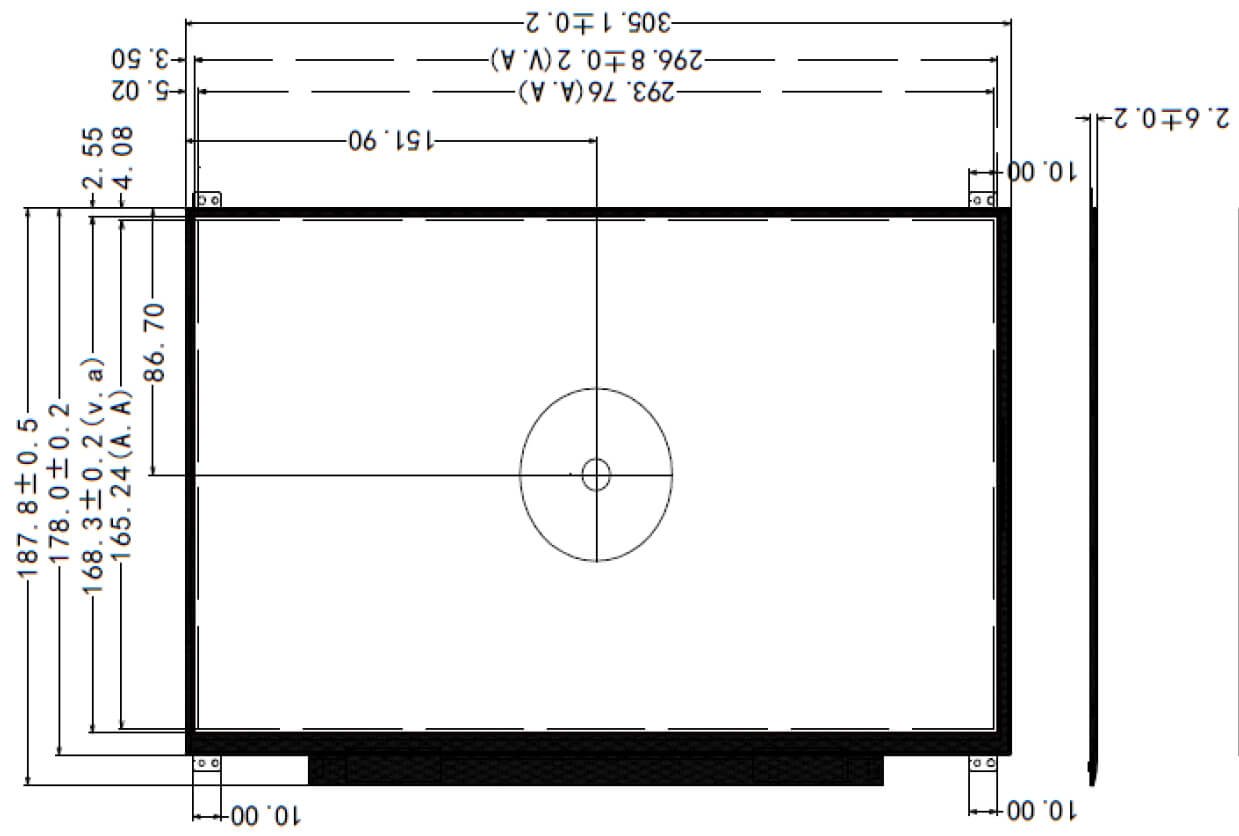

| Outline Dimension | 305.1(W)*178(H)*2.6(T) | mm |
| Active Area | 293.76(W)*165.24(H) | mm |
| Display Colors | 16.7M | |
| Display Mode | Normally Black. Transmissive TFT | |
| LCM Interface | eDP | |
| Driver IC | - | |
| Brightness | 220 | cd/m2 |
| Operation Temperature | 0 to 50 | |
| Storage Temperature | -20 to 70 |
