GL195TFT10A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor) It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 240X282 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.
| Item No. | GL195TFT10A |
|---|---|
| MOQ | 2pcs |
| Samples | In Stock |
| Lead Time | 7 Working Days |
| Payment Term | Paypal, T/T |
| Status | Mass Production |
| Availability | 5 Years Stable Supply |
| Customization | Support |
GL195TFT10A is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor) It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 240X282 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 1.95 | inch |
| Display Mode | Normally Black. Transmissive TFT | |
| Resolution | 240*282 | |
| LCD Type | a-Si TFT LCD | |
| View Direction | IPS | |

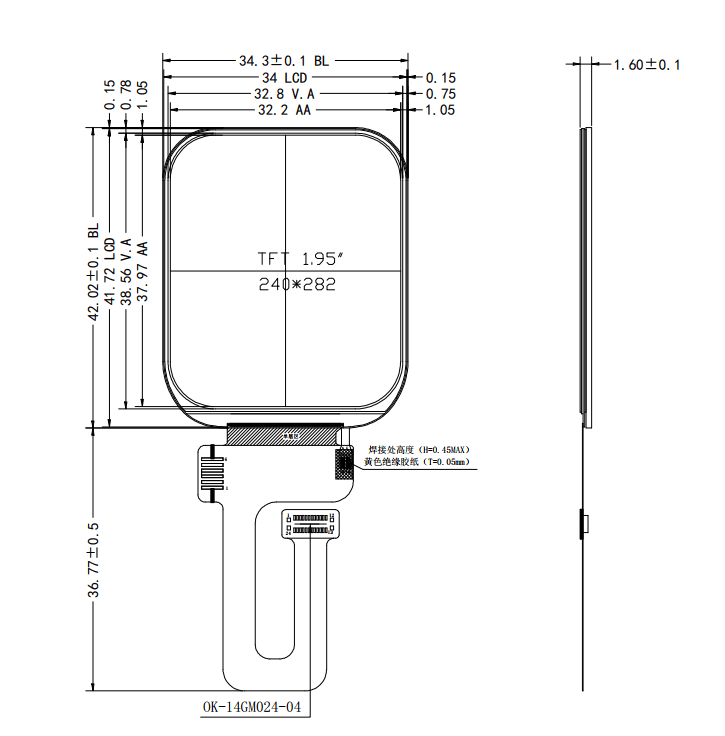

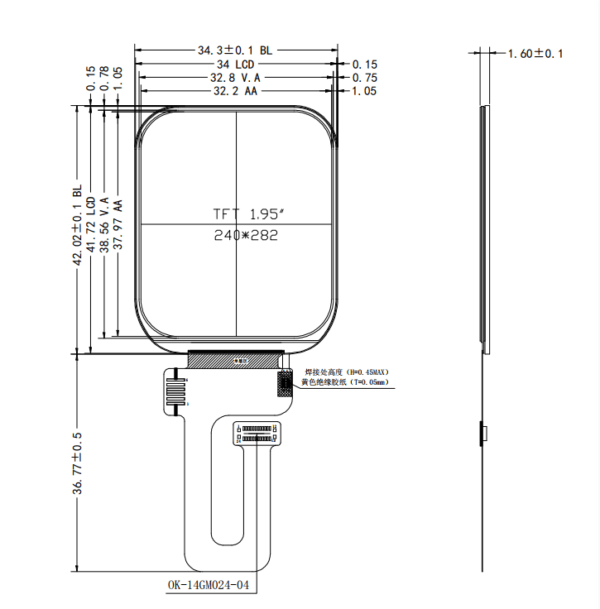

| Outline Dimension | 34.3(W)*40.02(H)*1.6(D) | mm |
| Active Area | 32.2(W)*37.97(H) | mm |
| Display Colors | 262K | |

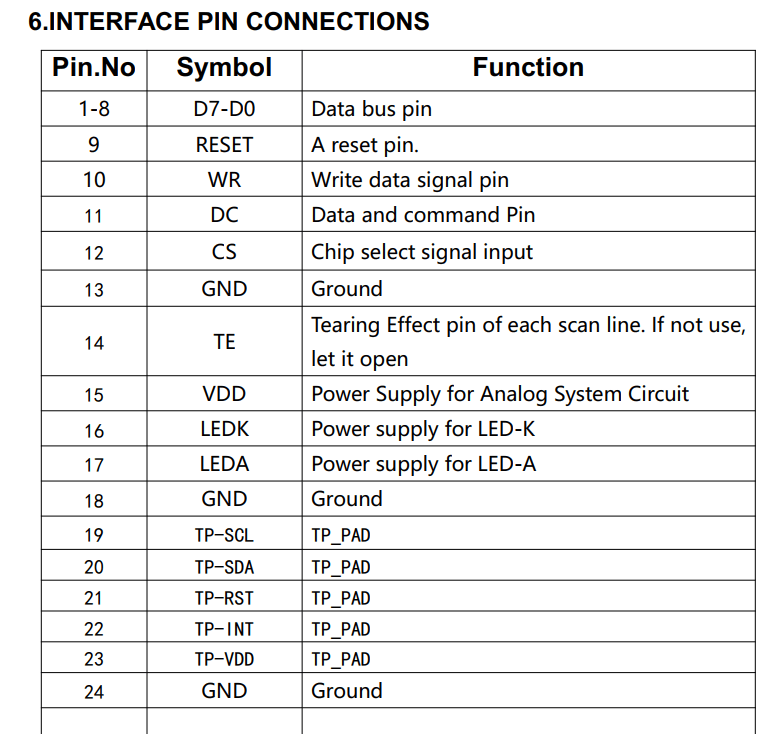

| LCM Interface | MCU 8bit | |
| Driver IC | GC9307N | |
| Brightness | 450 | cd/m2 |
| FPC Connector | OK-14GM024-04 | |
| Operation Temperature | -20 to 70 | |
| Storage Temperature | -30 to 80 |
7-Day Delivery LCD Display Factory, Customization Solution is Available.
