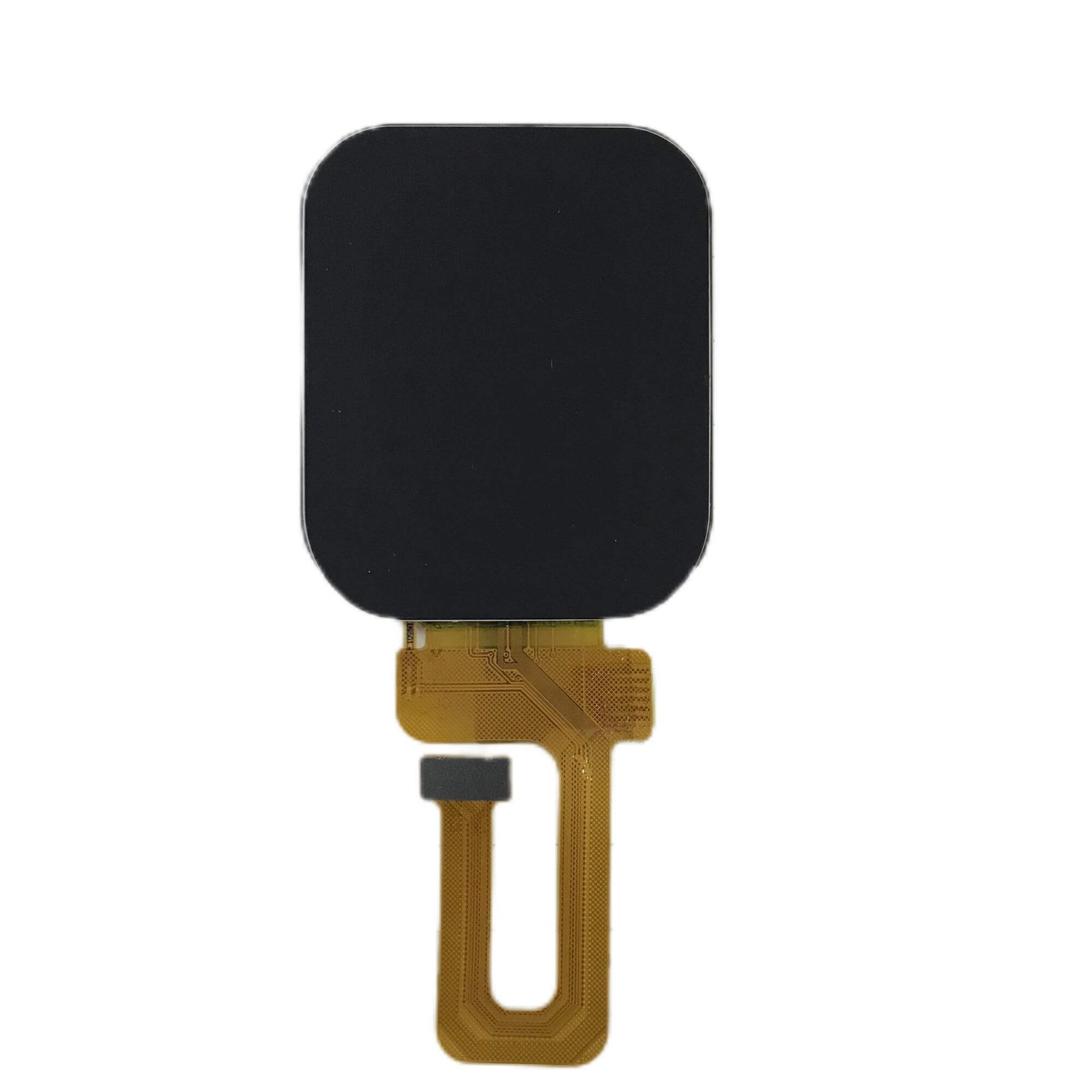

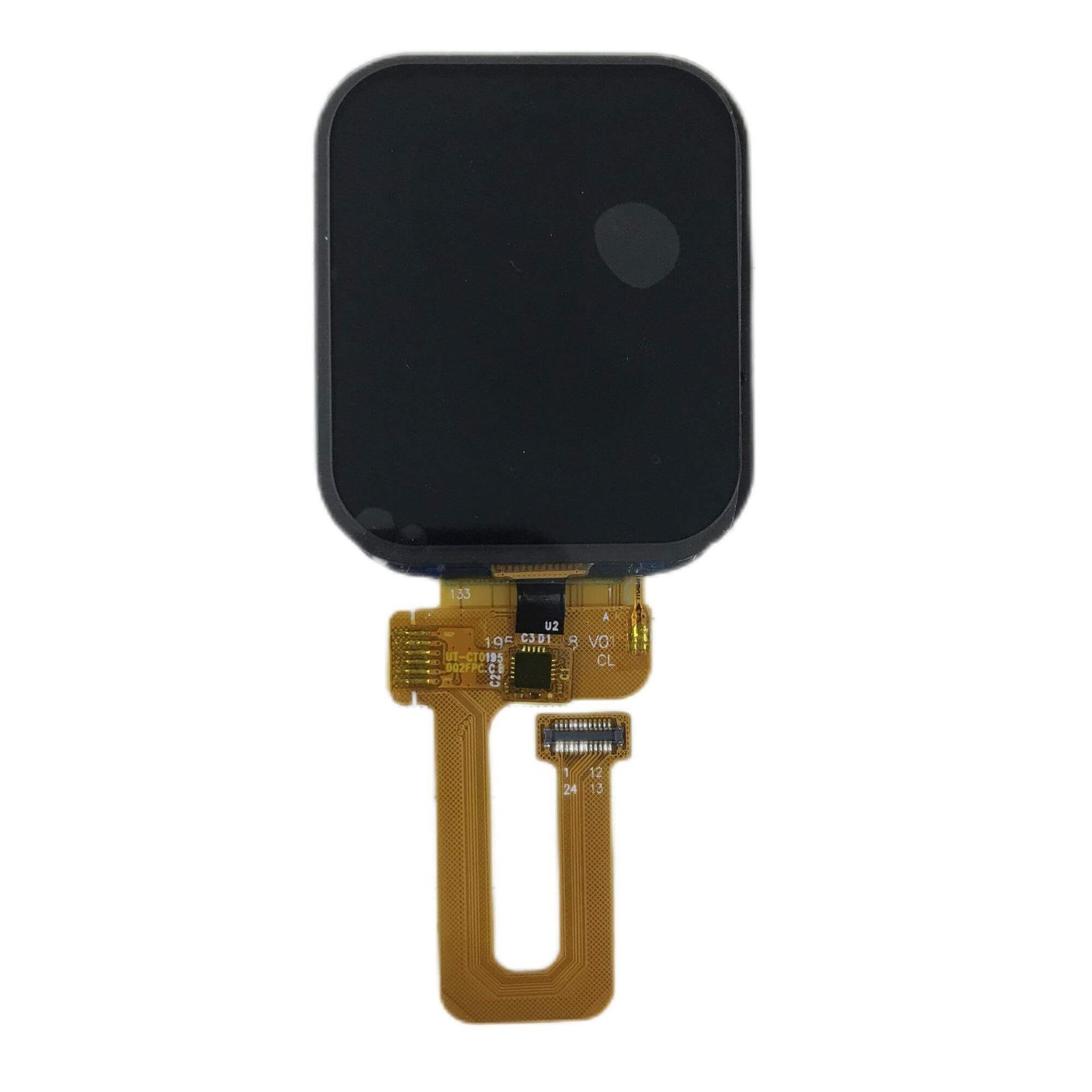

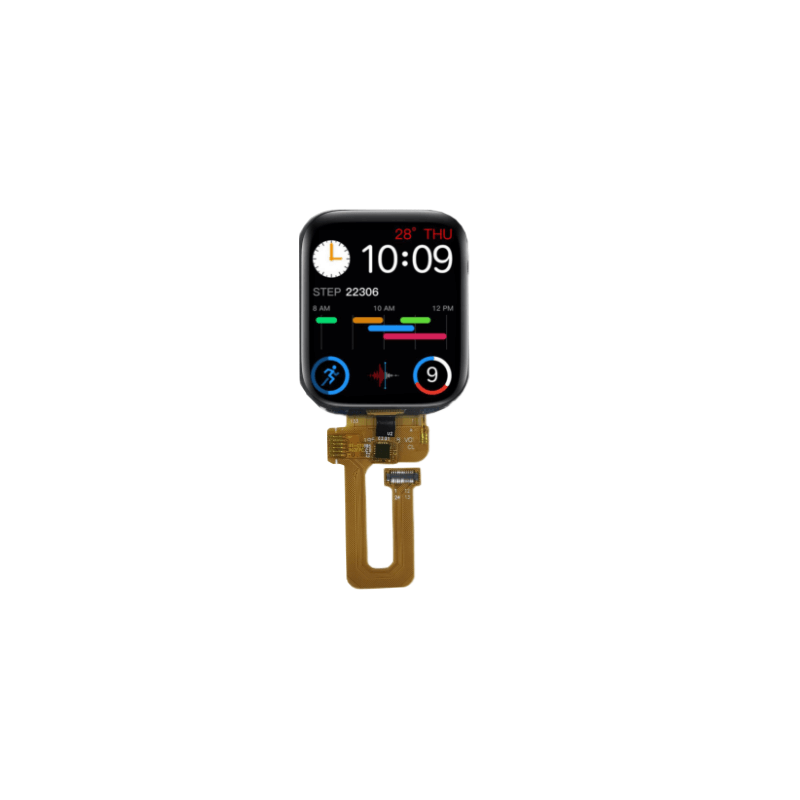

1.95inch IPS TFT LCD Display 240*282 Capacitive Touchscreen GC9307 LCD Screen

GL195TFT10B is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor) with a capacitive touchscreen. It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 240X282 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.

Additional information

Item No.

GL195TFT10B

MOQ

2pcs

Samples

In Stock

Lead Time

7 Working Days

Payment Term

Paypal, T/T

Status

Mass Production

Availability

5 Years Stable Supply

Customization

Support

Product Details



GL195TFT10B is a color active matrix LCD module, which includes amorphous silicon TFT (thin film transistor) with a capacitive touchscreen. It is Composed, of a driver IC, FPC, and a backlight unit. The module display area contains 240X282 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)1.95inch
Display ModeNormally Black. Transmissive TFT
Resolution240*282
LCD Typea-Si TFT LCD
View DirectionIPS
Outline Dimension35.74(W)*41.88(H)*1.85(D)mm
Active Area32.2(W)*37.97(H)mm
Display Colors262K
LCM InterfaceMCU 8bit
Driver ICGC9307N/ CST816D
Brightness450cd/m2
FPC ConnectorOK-14GM024-04
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Application:
  1. Smartwatch.
  2. Handheld device
  3. Smart camera
  4. Intelligent education robot
  5. Kids toys
  6. Smart home controller
  7. Advanced driver-assistance systems (ADAS)
