1.8inch Round TFT LCD Display 360*360 QSPI Interface ST77916 Medical Device LCD Screen

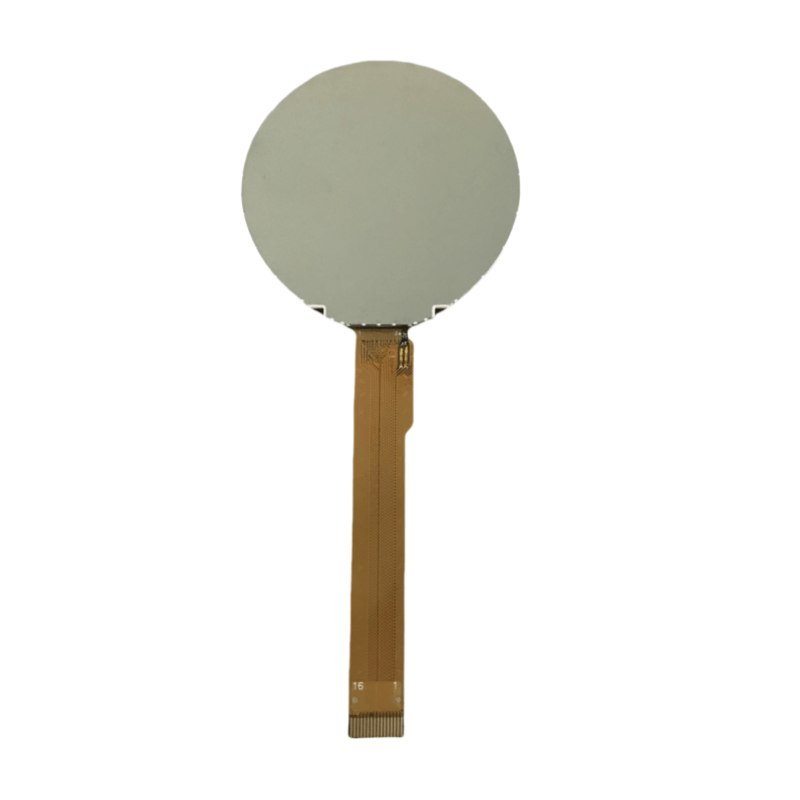

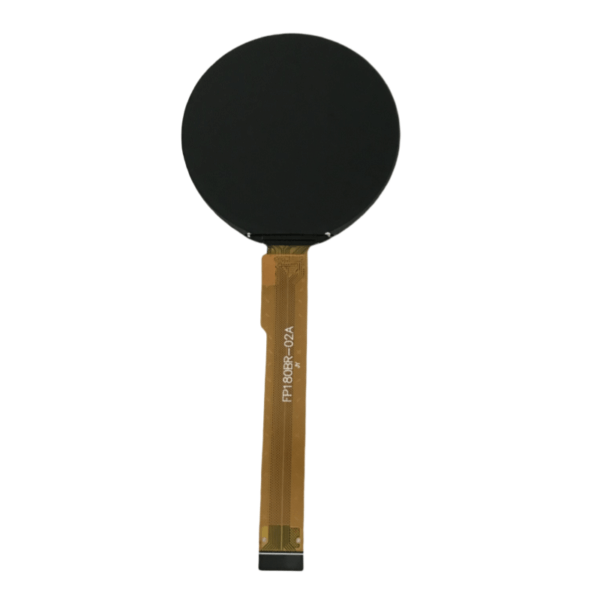

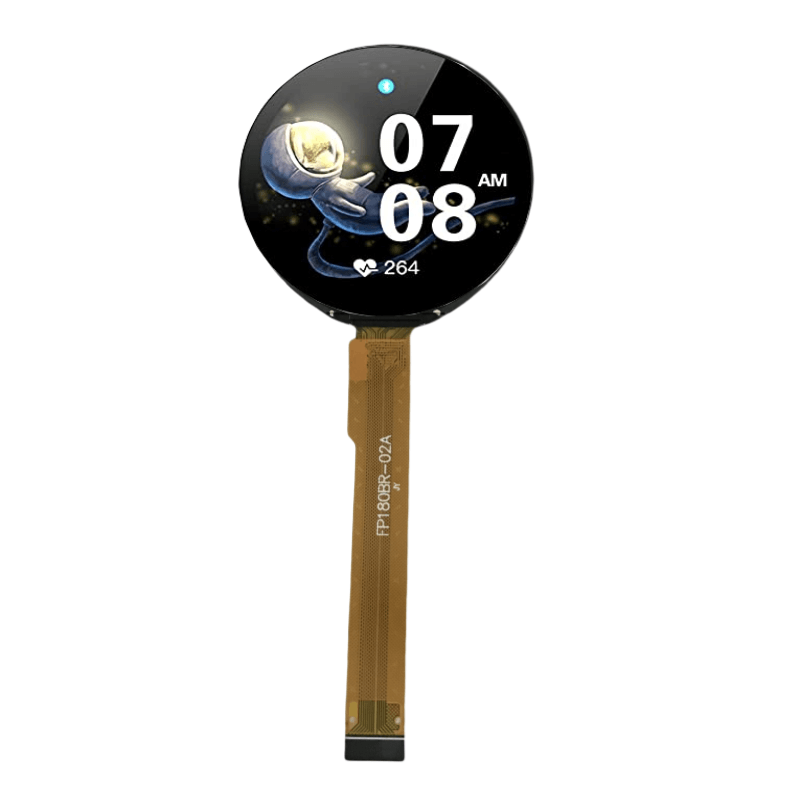

GL180TFT10A is a color-round active matrix Thin film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC, and a Backlight unit.

Additional information

Item No.

GL180TFT10A

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Mass Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL180TFT10A is a color-round active matrix Thin film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC, and a Backlight unit.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)1.8inch
Resolution360*360
LCD Typea-Si TFT LCD
View DirectionIPS

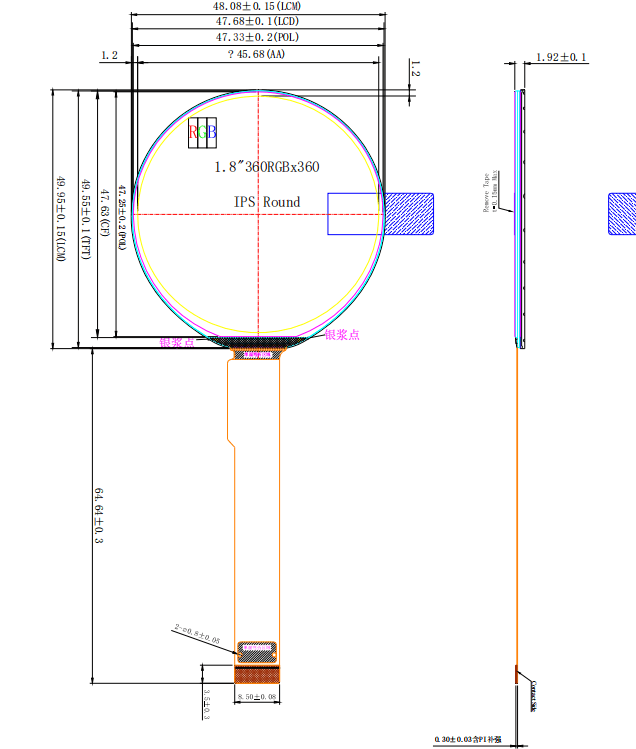

Outline Dimension48.08(H) * 49.95(V) *1.92 (D)mm
Active Area45.684(W)*45.684(H)mm
Display Colors262K
Display ModeNormally Black. Transmissive TFT
LCM InterfaceQSPI
Driver ICST77916
Brightness400cd/m2
Pin Number16PIN 0.5mm
Operation Temperature-20 to 70
Storage Temperature-30 to 80

  • Product Application:
  1. Wearable Device
  2. E-Bike
  3. Measurement tool
  4. Medical Device
  5. Smart home controller
  6. Advanced driver-assistance systems (ADAS)
  7. Remote Controller
  8. AI Robot
