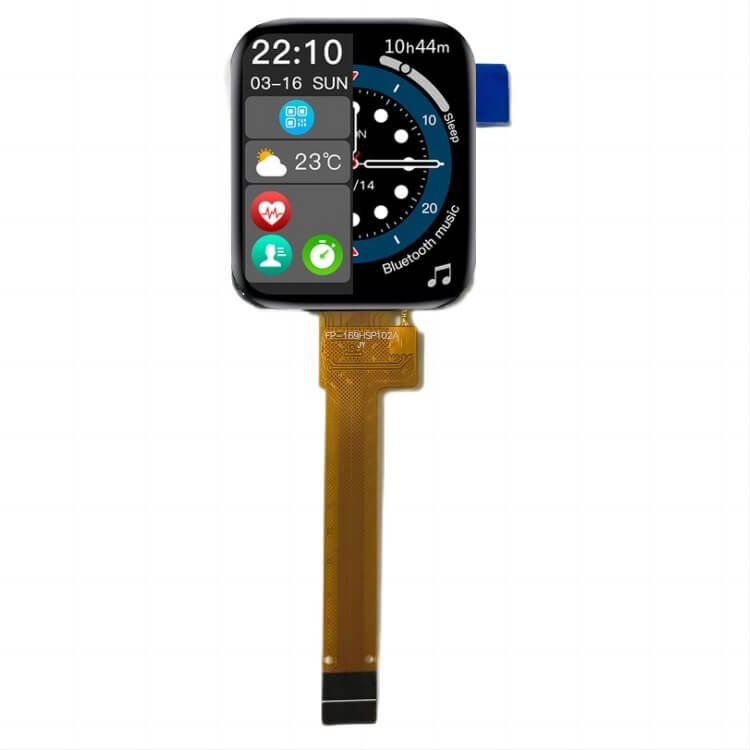

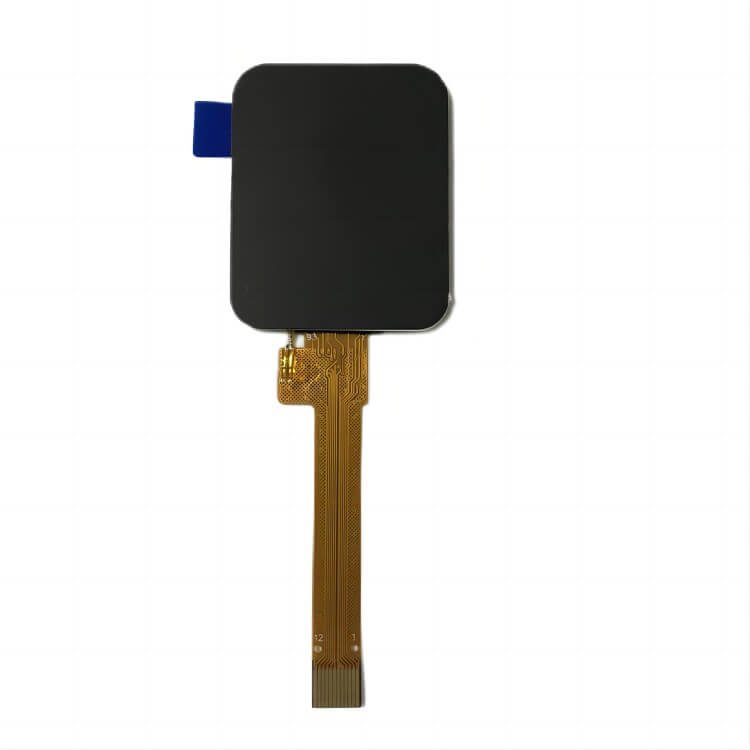

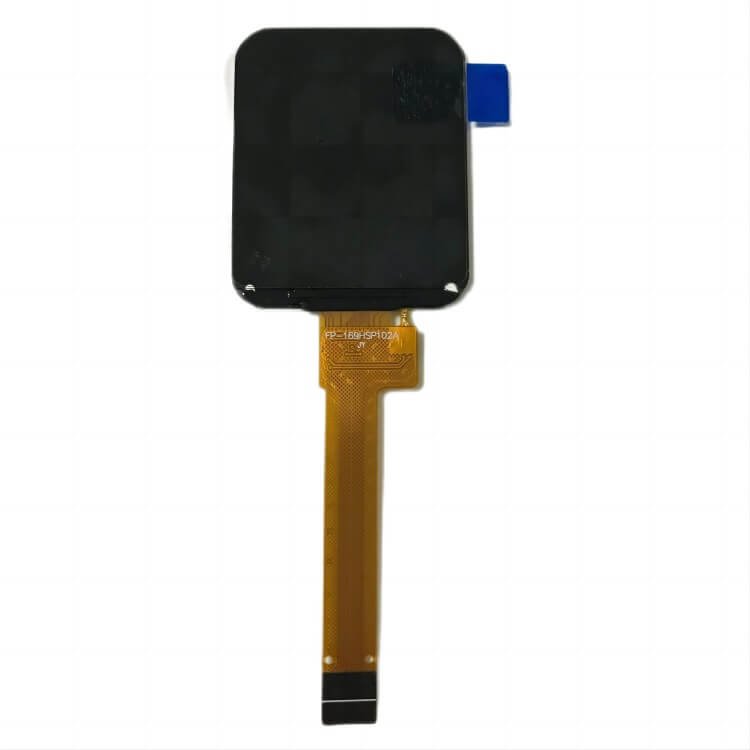

1.69inch IPS TFT LCD Display 240*280 SPI 4line Interface Industrial Router LCD Screen

GL169TFT11A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 1.69-inch contains 240(RGB)*280 dots and can display up to 262K colors.

Additional information

Item No.

GL169TFT11A

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL169TFT11A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 1.69-inch contains 240(RGB)*280 dots and can display up to 262K colors.



  •  Product Features
FeaturesSpecificationUnit
Display Size(Diagonal)1.69inch
Resolution240*280
LCD Typea-Si TFT LCD
View DirectionIPS

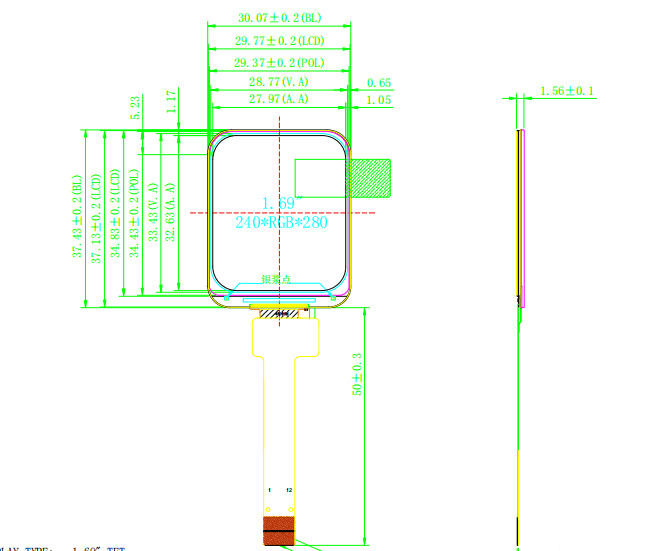

Outline Dimension30.07(H) * 37.43(V) *1.56(D)mm
Active Area27.97(H) * 32.63(V) mm
Display Colors262K
Display ModeNormally Black. Transmissive TFT
LCM InterfaceSPI 4line
Driver ICST7789
Brightness300cd/m2

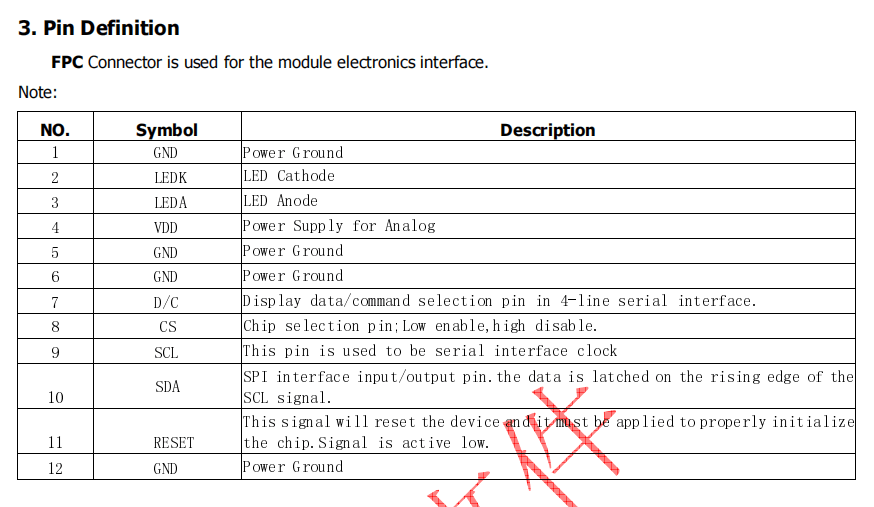

Pin Number12Pin 0.5mm
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Applications
  1. Industrial Router
  2. Wearable devices
  3. Handheld device
  4. Smart Home
  5. Oven
  6. Kids toys
  7. Smart home controller
