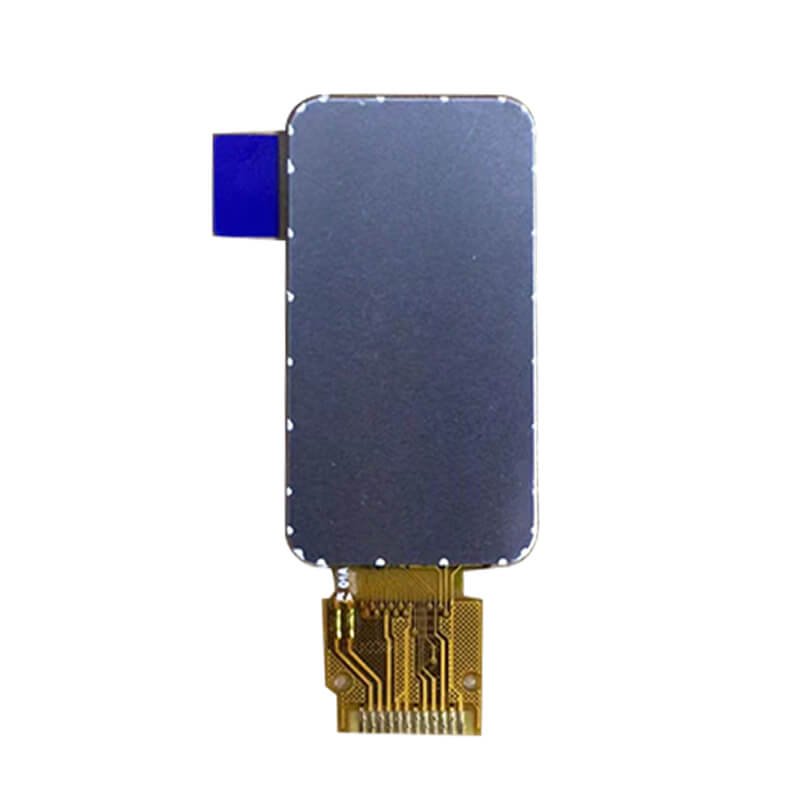

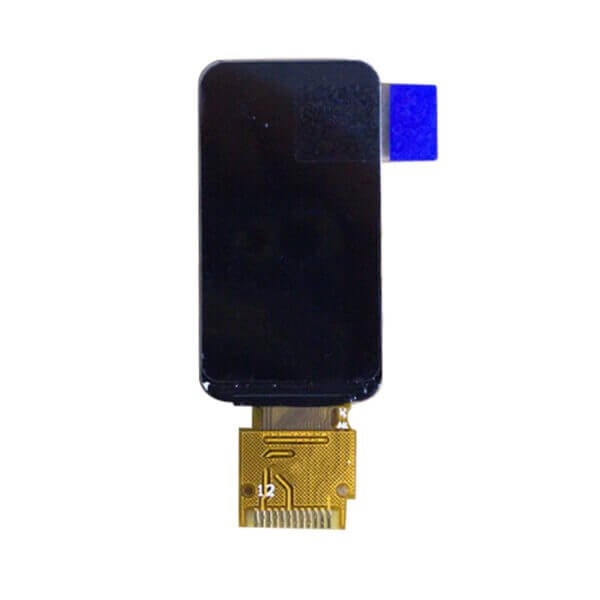

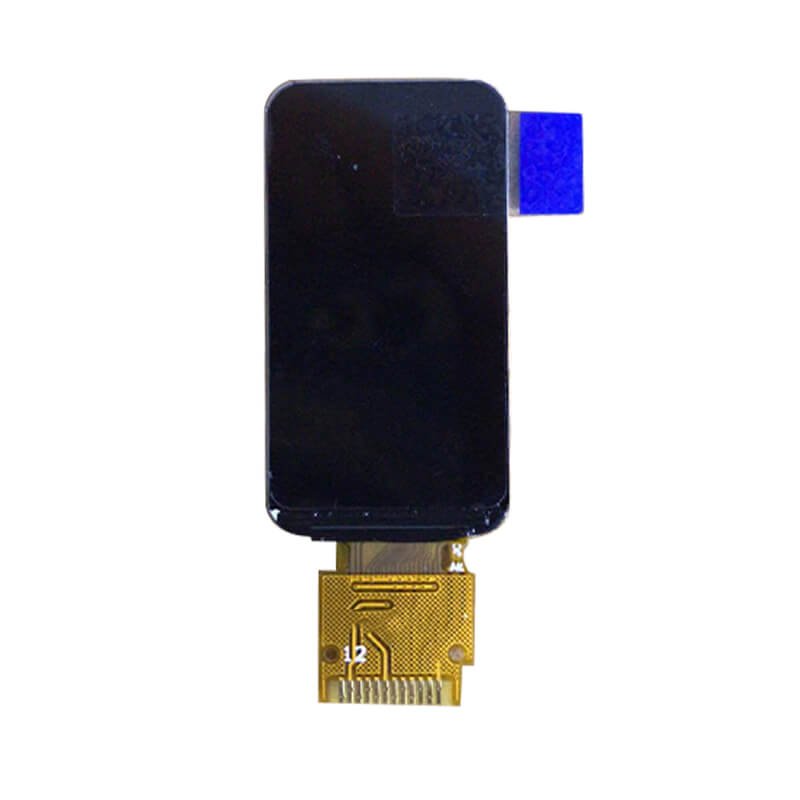

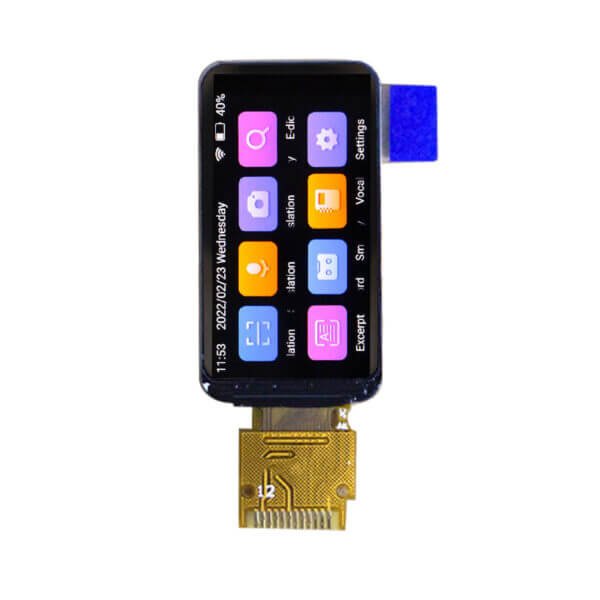

1.47inch 172*320 IPS Bar TFT LCD SPI 4line ST7789V3 Wireless Bluetooth LCD Display

GL147TFT10A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 1.47-inch contains 172(RGB)*320 dots and can display up to 262K colors.

Additional information

Item No.

GL147TFT10A

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL147TFT10A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of a 1.47-inch contains 172(RGB)*320 dots and can display up to 262K colors.



  •  Product Features
FeaturesSpecificationUnit
Display Size(Diagonal)1.47inch
LCD Typea-Si TFT LCD
Display ModeNormally Black. Transmissive TFT
View DirectionIPS
Resolution172*320

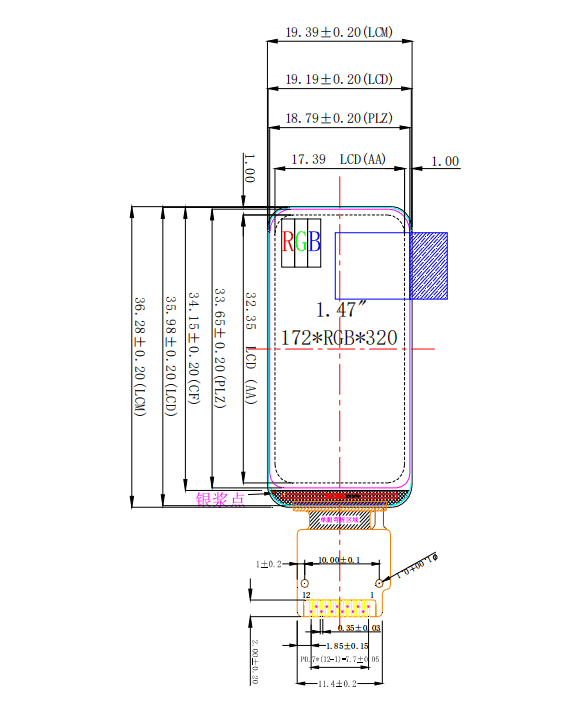

Outline Dimension19.39(W)*36.28(H)*1.46(T)mm
Active Area17.3892(W)*32.352(H)mm
Display Colors262K
LCM InterfaceSPI 4line
Driver ICST7789V3
Brightness600cd/m2

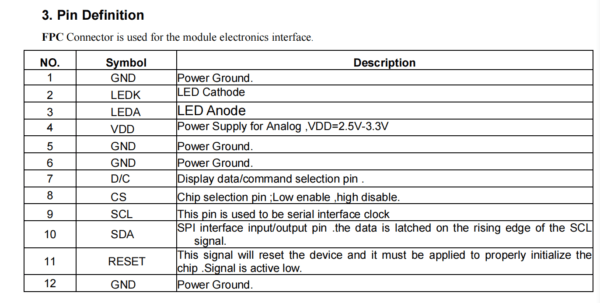

Pin Number12Pin Sodering Type
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Applications
  1. Smartwatch.
  2. Wearable devices
  3. Handheld device
  4. POS
  5. Smart camera
  6. Intelligent education robot
  7. Kids toys
  8. Smart home controller
  9. Advanced driver-assistance systems (ADAS)
