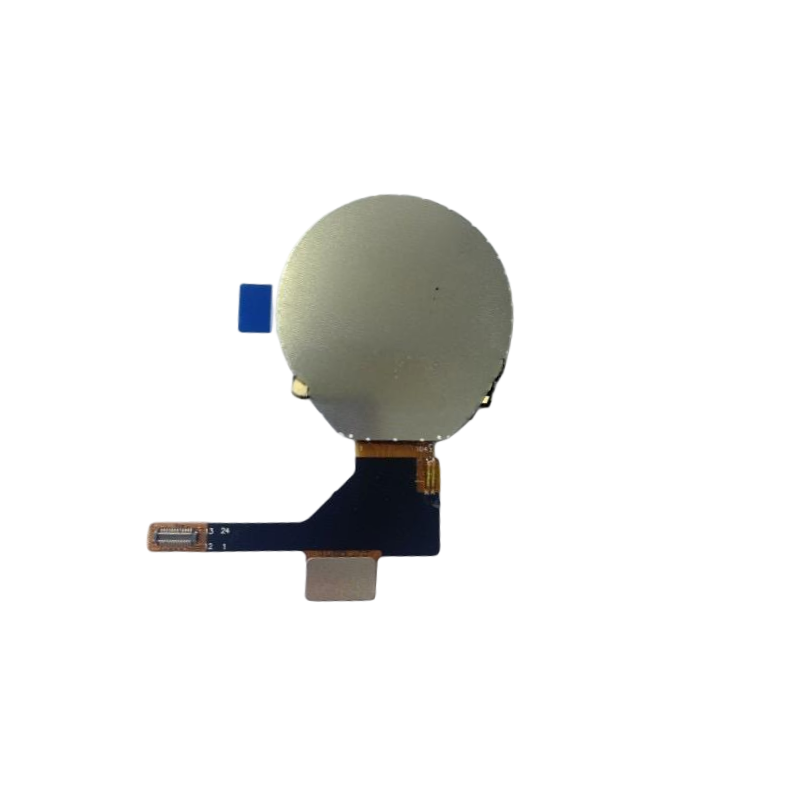

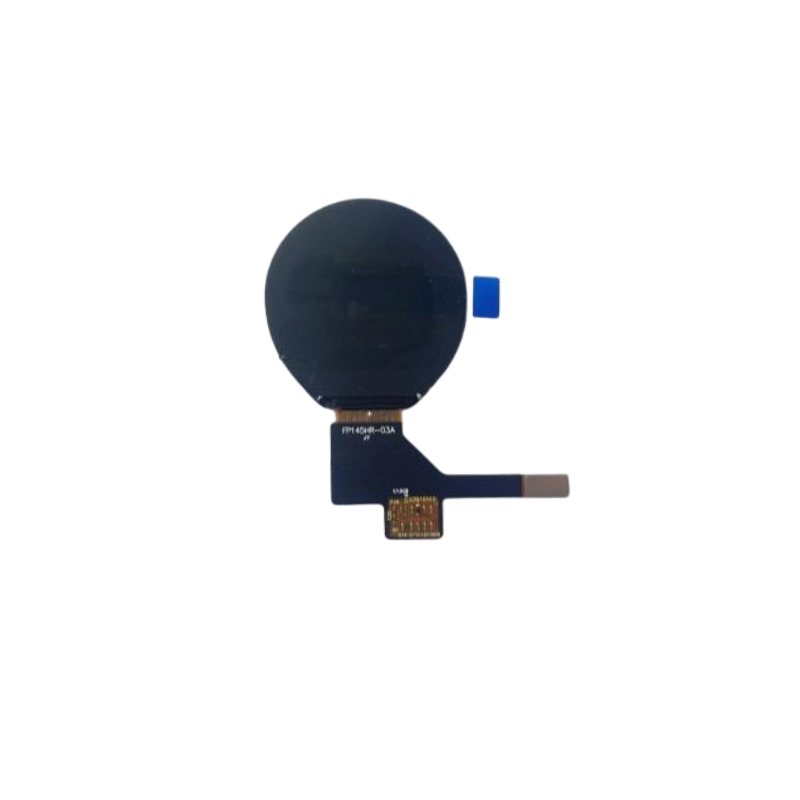

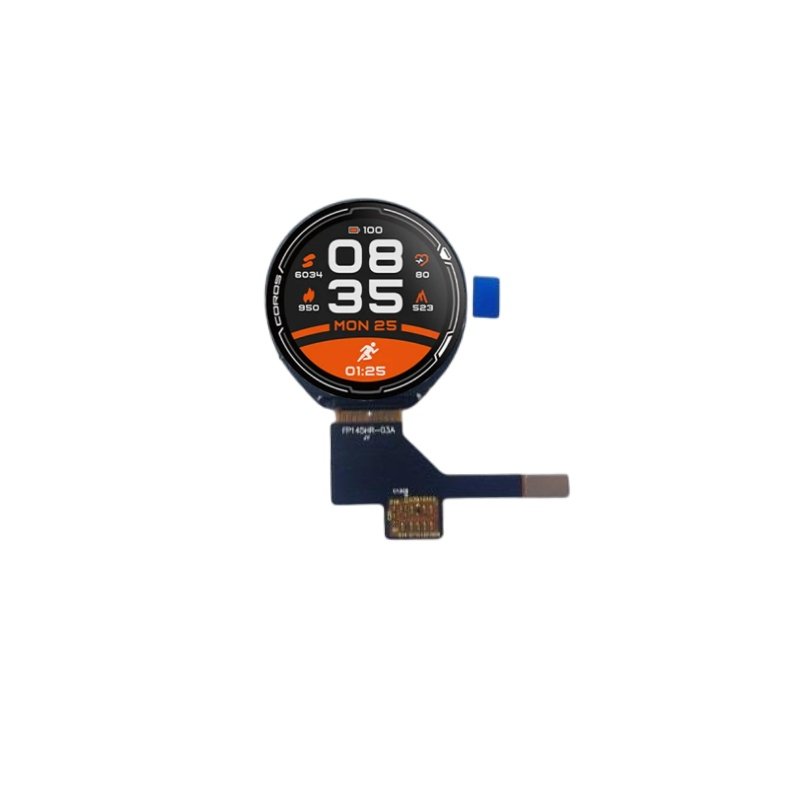

1.45inch IPS Round TFT LCD Display 412*412 QSPI 24Pin Interface Circle LCD Module

GL145TFT01A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of 1.45 inches contains 412(RGB)*412 dots and can display up to 262K colors.

Additional information

Item No.

GL145TFT01A

Lead Time

7 Working Days For Samples

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



GL145TFT01A display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a backlight unit. The resolution of 1.45 inches contains 412(RGB)*412 dots and can display up to 262K colors.



  •  Product Features
FeaturesSpecificationUnit
Display Size(Diagonal)1.45inch
LCD Typea-Si TFT LCD
Display ModeNormally Black, Transmissive Mode
View DirectionIPS
Resolution412RGB*412

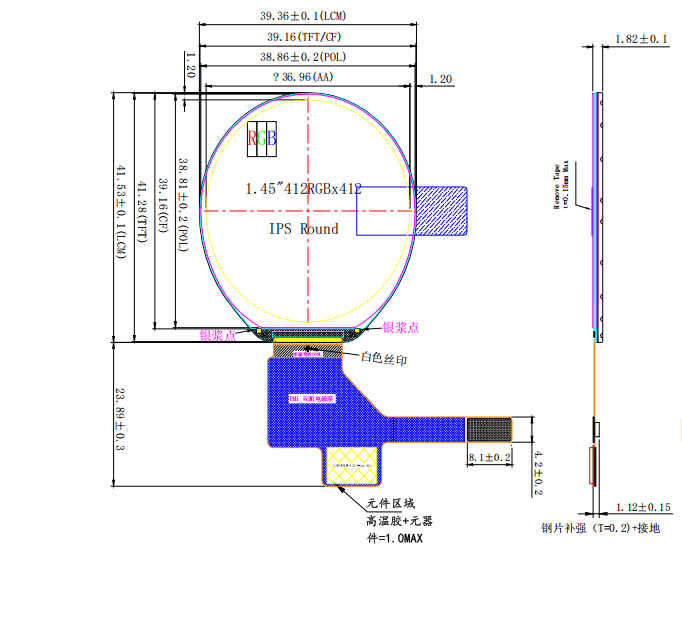

Outline Dimension39.36*41.53*1.63mm
Active Area36.96*36.96mm
Display Colors262K
LCM InterfaceQSPI
Driver ICWEA2010
Brightness450cd/m2
ConnectorBM14B(0.8)-24DP-0.4V

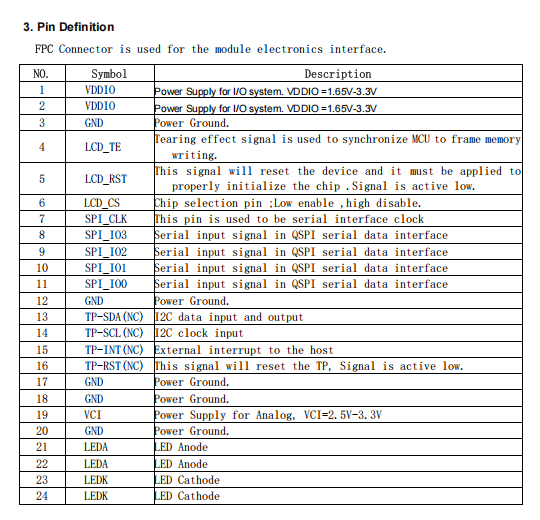

Pin Number24Pin
Operation Temperature-20 to 70
Storage Temperature-30 to 80



  • Product Applications
  1. E-Scotter
  2. Ebike
  3. Motorcycle
  4. Smart camera
  5. Intelligent education robot
  6. Smarthome Control
