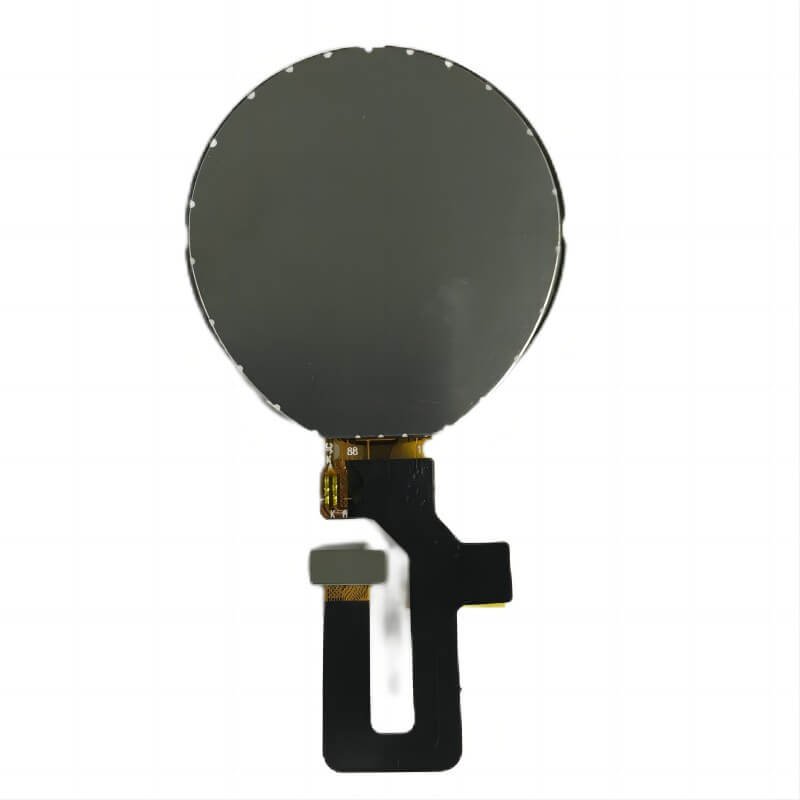

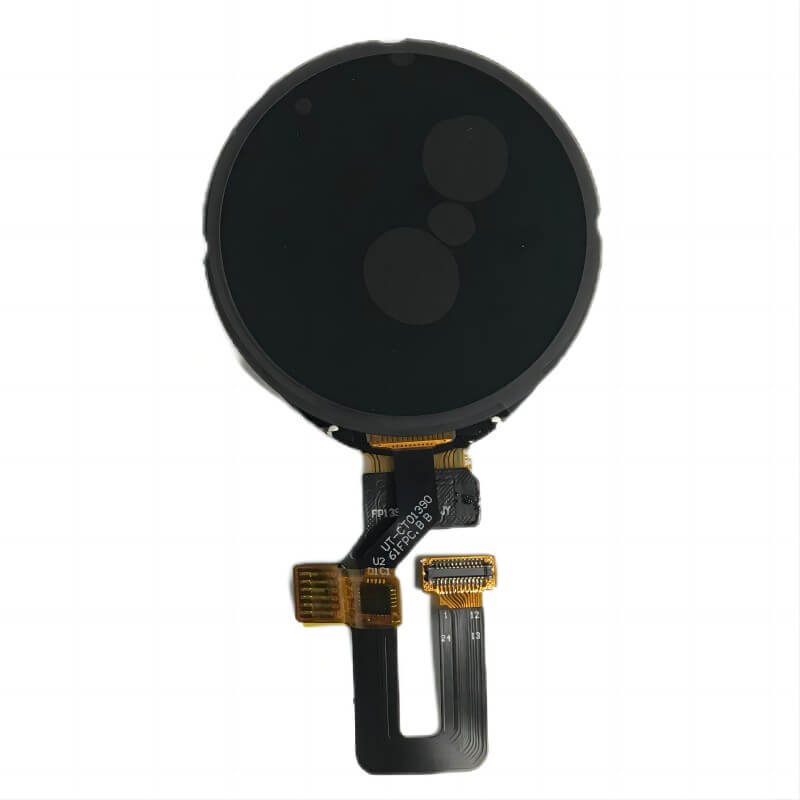

1.39inch IPS Round TFT LCD Display 360*360 MCU 8Bit GC9B71 Smartwatch Touch Screen

GL139TFT10B is a color-active matrix LCD Module incorporating amorphous silicon TFT(Thin Film Transistor) with a capacitive touchscreen. It is composed of a color TFT-LCD panel, driver IC, FPC, and a backlight unit. The module display area contains 360*360 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.

Additional information

Item No.

GL139TFT10B

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Mass Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL139TFT10B is a color-active matrix LCD Module incorporating amorphous silicon TFT(Thin Film Transistor) with a capacitive touchscreen. It is composed of a color TFT-LCD panel, driver IC, FPC, and a backlight unit. The module display area contains 360*360 pixels and can display up to 262K colors. This product accords with RoHS environmental criteria.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)1.39inch
Resolution360*360
LCD Typea-Si TFT LCD
View DirectionIPS
Outline Dimension39.7(W )*39.7(H)*2.05(T)mm
Active Area35.3(W)*35.3(H)mm
Display Colors262K
Display ModeNormally Black. Transmissive TFT
LCM InterfaceMCU 8Bit
Driver ICGC9B71/ CST816D
Brightness400cd/m2
Pin Number24Pin
FPC ConnectorOK-14GM024-04
Operation Temperature-20 to 70
Storage Temperature-30 to 80

  • Product Application:
  1. Wearable Device
  2. E-Bike
  3. Measurement tool
  4. Medical Device
  5. Smart home controller
  6. Advanced driver-assistance systems (ADAS)
  7. Remote Controller
  8. AI Robot
