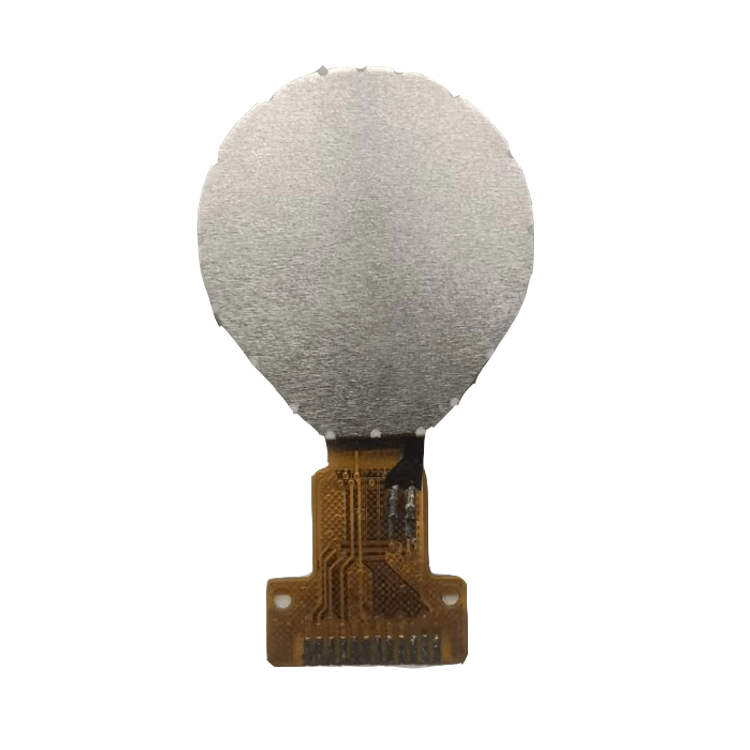

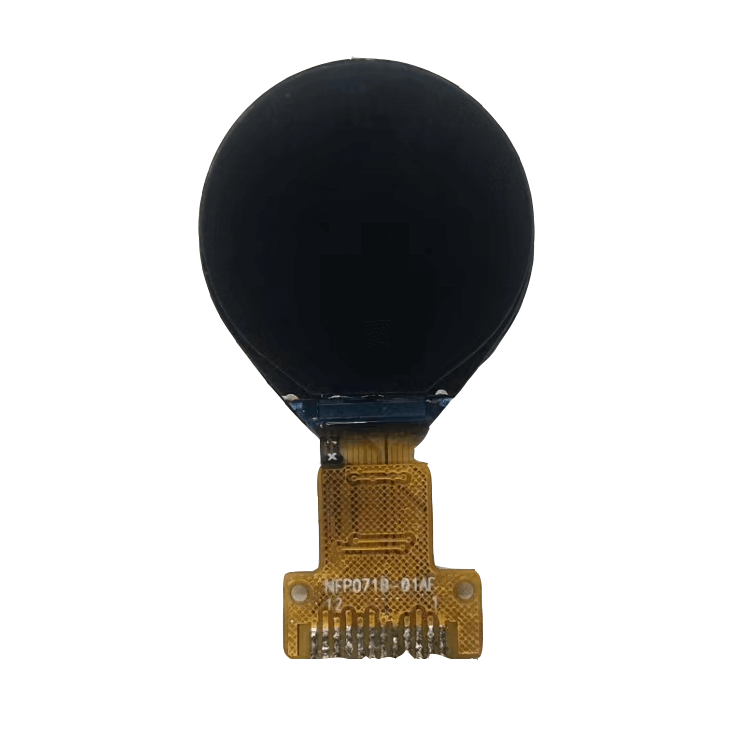

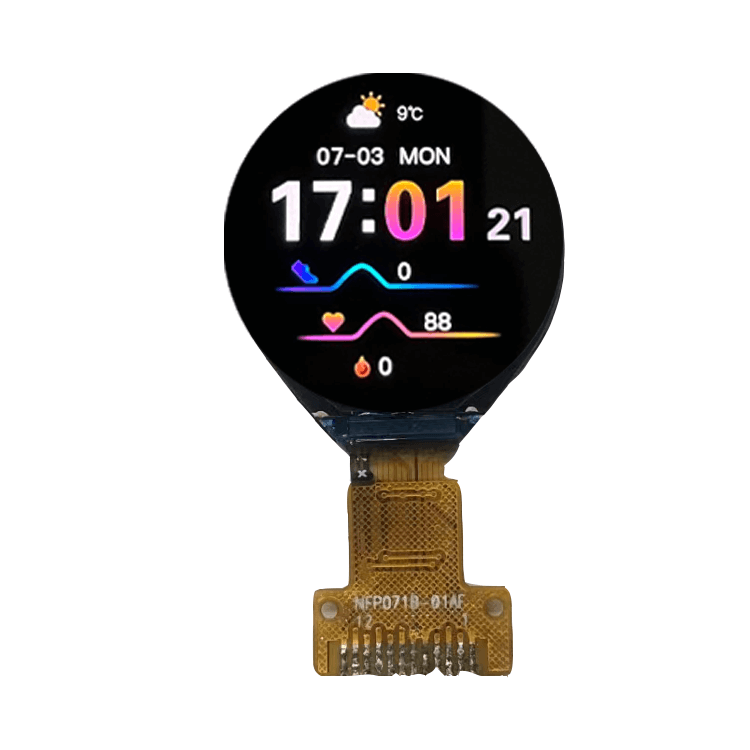

0.71inch Small Round IPS TFT LCD Display 160*160 SPI 4line GC9D01 Smartwatch LCD Screen

GL071TFT10A is a color-round active matrix Thin film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is a 160RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC, and a Backlight unit.

Additional information

Item No.

GL071TFT10A

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Mass Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL071TFT10A is a color-round active matrix Thin film transistor(TFT)liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is a 160RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC, and a Backlight unit.



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)0.71inch
Resolution160*160
Display ModeNormally Black. Transmissive TFT
LCD Typea-Si TFT LCD
View DirectionIPS

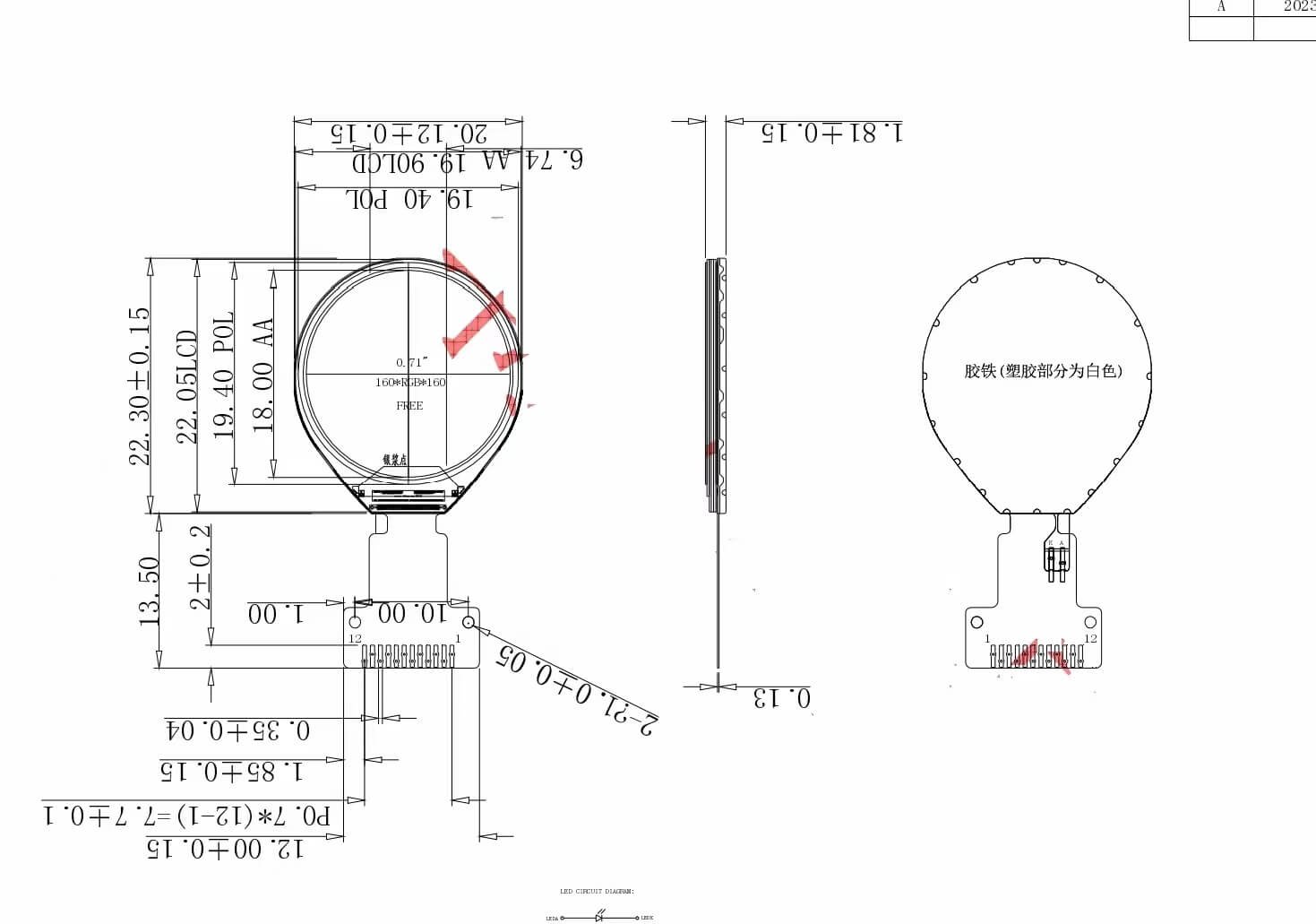

Outline Dimension20.12(H) * 22.3(V) *1.81(D) mm
Active Area18(H)*18(V)mm
Display Colors65K
LCM InterfaceSPI 4W
Driver ICGC9D01
Brightness350cd/m2
Pin Number12Pin Sodering Type
Operation Temperature-20 to 70
Storage Temperature-30 to 80

  • Product Application:
  1. Wearable Device
  2. E-Bike
  3. Measurement tool
  4. Medical Device
  5. Smart home controller
  6. Advanced driver-assistance systems (ADAS)
  7. Remote Controller
  8. AI Robot
